MT-04-04-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/4" Flareless Compression w/ Nut & Sleeve | SAE J514 | Carbon Steel

MT-04-04-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/4" Flareless Compression w/ Nut & Sleeve | SAE J514 | Carbon Steel

Save $14.98 Save $14.98
$37.45
$37.45 - $37.45
$37.45
$22.47
$22.47 - $22.47
$22.47

Kurt Hydraulics
Flareless Compression with Nut and Sleeve Per SAE J514
Specifications for Variant SKU: MT-04-04-K2 Kurt
Series: K2 Series
Shape (Orientation): Straight
Material(s): Carbon Steel

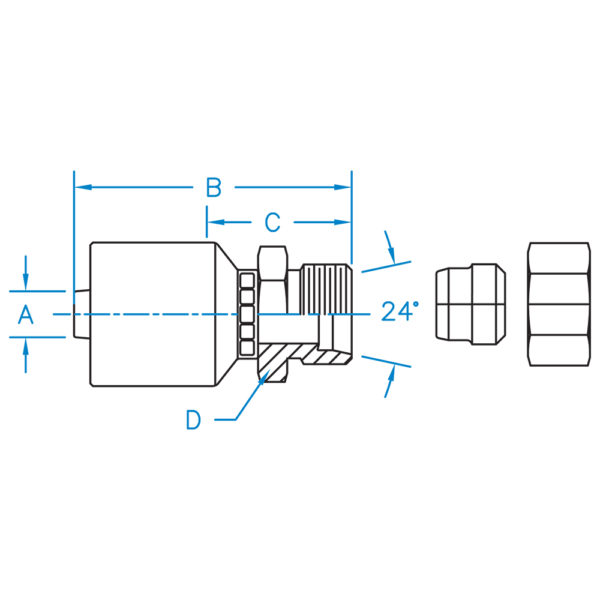

Part Number Hose I.D. (in.) B C D Thread
MT-04-04-K2 1/4" 1.90" 0.84" 9/16" 7/16 – 20
MT-04-05-K2 1/4" 1.90" 0.84" 9/16" 1/2 – 20
MT-04-06-K2 1/4" 1.92" 0.84" 5/8" 9/16 – 18
MT-04-08-K2 1/4" 2.04" 0.98" 7/8" 3/4 – 16
MT-06-04-K2 3/8" 2.29" 0.92" 11/16" 7/16 – 20
MT-06-05-K2 3/8" 2.23" 0.86" 11/16" 1/2 – 20
MT-06-06-K2 3/8" 2.08" 0.85" 3/4" 9/16 – 18
MT-06-08-K2 3/8" 2.37" 1.00" 3/4" 3/4 – 16
MT-08-08-K2 1/2" 2.39" 1.05" 7/8" 3/4 – 16
MT-08-10-K2 1/2" 2.46" 1.12" 7/8" 7/8 – 14
MT-08-12-K2 1/2" 2.58" 1.24" 1-1/8" 1-1/16 – 12
Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
