MW-04-06-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 3/8" Tube Stem | Carbon Steel

Name: MW-04-06-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 3/8" Tube Stem | Carbon Steel
Brand: Kurt Hydraulics
SKU: MW-04-06-K2 Kurt
Price: 20.17 USD
Availability: InStock

Save $13.45

$33.62

$33.62 - $33.62

$33.62

$20.17

$20.17 - $20.17

$20.17

Kurt Hydraulics
MW - Stand Tube Rigid

Specifications for Variant SKU: MW-04-06-K2 Kurt
Series:	K2 Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Hose Barb x 3/8in Tube Stem
Material(s):	Carbon Steel

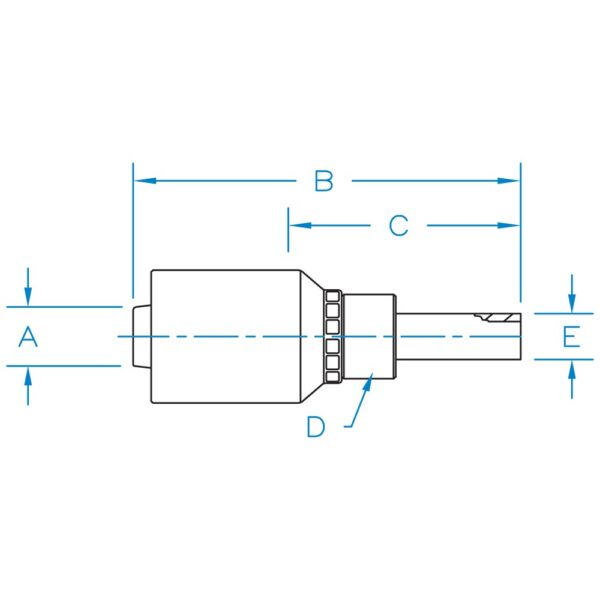

Part Number	Hose I.D. (in.)	B	C	D	E	Thread
MW-04-04-K2	1/4"	2.47"	1.41"	5/8"	1/4"	N/A
MW-04-05-K2	1/4"	2.58"	1.52"	5/8"	5/16"	N/A
MW-04-06-K2	1/4"	2.66"	1.60"	5/8"	3/8"	N/A
MW-06-06-K2	3/8"	2.99"	1.62"	3/4"	3/8"	N/A
MW-06-08-K2	3/8"	3.26"	1.89"	3/4"	1/2"	N/A
MW-08-08-K2	1/2"	3.28"	1.94"	7/8"	1/2"	N/A
MW-08-10-K2	1/2"	3.49"	2.15"	7/8"	5/8"	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
