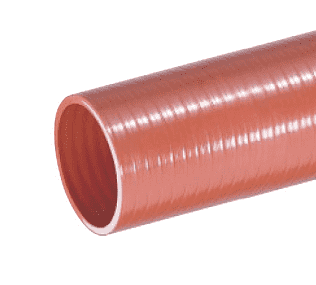

ORV300X100 Kuriyama Tigerflex ORV Series Heavy Duty Oil Resistant PVC Suction Hose - 3" - 100ft

ORV300X100 Tigerflex by Kuriyama | ORV Series | Heavy Duty Oil Resistant Suction Hose | 3" ID | PVC | 100ft Length

Save $403.44 Save $403.44
$1,412.04
$1,412.04 - $1,412.04
$1,412.04
$1,008.60
$1,008.60 - $1,008.60
$1,008.60

Kuriyama Tigerflex ORV™ Series Heavy Duty Oil Resistant PVC Suction Hose


Package Quantity: 100 FT

Specifications for Variant SKU: ORV300X100 Kuriyama | 100 |
Brand: Tigerflex
Series: ORV Series
Hose Color(s): Orange
Internal Diameter: 3in
Outer Diameter: 3.41in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant

SPECIFICATIONS

Application: Environmental clean-up, Oil skimming, Oil slurries, Oil suction, Vapor recovery - hydrocarbon emmissions SAE Rating: N/A
Other Ratings: N/A Tube: Oil Resistant PVC
Reinforcement: Rigid PVC Helix Cover: N/A
Temperature Range: 5 deg. F (-15 deg. C) to 150 deg. F (+65.5 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Oil Resistant PVC - Made with special oil resistant compounds which exhibit medium resistance to oil and other hydrocarbons.
  • Smooth Outer Cover - Provides increased pressure rating and smooth surface for banding.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
ORV075X100 3/4" 19.0mm 1.01" 25.6mm 100 PSI 60 PSI 28 in .Hg 26 in .Hg 3" 100ft 0.19 lbs
ORV100X100 1" 25.4mm 1.26" 32.0mm 80 PSI 50 PSI 28 in .Hg 26 in .Hg 3" 100ft 0.24 lbs
ORV125X100 1-1/4" N/A N/A N/A N/A N/A N/A N/A N/A 100ft N/A
ORV150X100 1-1/2" 38.1mm 1.76" 44.6mm 60 PSI 40 PSI 28 in .Hg 24 in .Hg 5" 100ft 0.35 lbs
ORV200X100 2" 50.8mm 2.32" 59.0mm 60 PSI 40 PSI 28 in .Hg 24 in .Hg 7" 100ft 0.55 lbs
ORV300X100 3" 76.2mm 3.41" 86.7mm 65 PSI 40 PSI 28 in .Hg 22 in .Hg 10" 100ft 1.09 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
