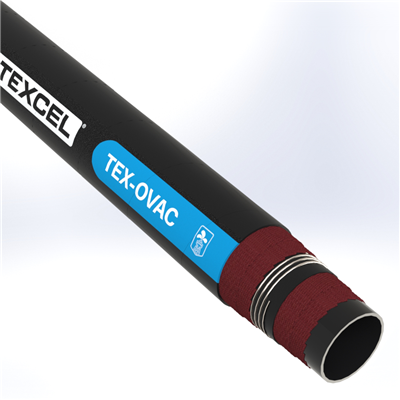

OVAC-1.5 by Texcel | TEX-OVAC Series | Oilfield Suction Hose | 1-1/2" Hose ID | 29 in/Hg Vacuum Rated |150 PSI | Black

OVAC-1.5 by Texcel | TEX-OVAC Series | Oilfield Suction Hose | 1-1/2" Hose ID | 29 in/Hg Vacuum Rated |150 PSI | Black

$8.70 - $724.50
$8.70
$7.73
$7.73 - $644.00
$7.73

Texcel
TEX-OVAC Series | Oilfield Suction Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: OVAC-1.5-100 Texcel | 100 |
Series: TEX-OVAC Series
Hose Color(s): Black
Internal Diameter: 1.50in
Outer Diameter: 1.88in
Tubing Construction: Elastomer (Proprietary)
Cover Construction: SBR/Nitrile Blend
Technical Data:
Description: Texcel’s exclusive design for rugged oilfield service where full suction and working pressures are required. Tube: Black, specially compounded elastomer low oil swell
Cover: Black, SBR/Nitrile blend compounded for oil and ozone resistance (smooth) Reinforcement: High tensile tire cord plies; dual helix wire
Safety Factor: 4:1 Temperature: -20°F to +180°F
Branding: TEXCEL® TEX-OVAC - OILFIELD SUCTION HOSE NOT FOR REFINED FUELS 150 PSI W.P. Safety Note: Not recommended for refined petroleum products
Part Number Hose ID Hose OD Working Pressure (psi) Vacuum (in./HG) Bend Radius Lbs./ft
OVAC-1.5 1-1/2" 1-56/64" 150 psi 29 in./HG 6" 0.67 lbs
OVAC-2.0 2" 2-28/64" 150 psi 29 in./HG 7" 0.87 lbs
OVAC-3.0 3" 3-32/64" 150 psi 29 in./HG 9" 1.52 lbs
OVAC-4.0 4" 4-36/64" 150 psi 29 in./HG 14" 3.32 lbs
