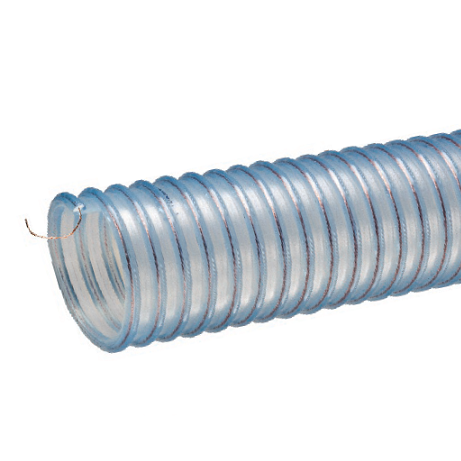

PF500X100 Kuriyama Tigerflex PF Series Plas-T-Flo Heavy Duty Polyurethane Material Handling Hose With Grounding Wire - 5" - 100ft

PF500X100 Tigerflex by Kuriyama | PF Series | Plas-T-Flo Heavy Duty Material Handling Hose With Grounding Wire | 5" ID | Polyurethane | 100ft Length

Save $1,810.56 Save $1,810.56
$6,336.96
$6,336.96 - $6,336.96
$6,336.96
$4,526.40
$4,526.40 - $4,526.40
$4,526.40

Kuriyama Tigerflex PF™ Series Plas-T-Flo Heavy Duty Polyurethane Material Handling Hose With Grounding Wire


Package Quantity: 100 FT

Specifications for Variant SKU: PF500X100 Kuriyama | 100 |
Brand: Plas-T-Flo, Tigerflex
Series: PF Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 5in
Outer Diameter: 5.87in
Tubing Construction: Polyurethane
Applicable Specs & Approvals: Applicable FDA Requirements, Applicable USDA Requirements, RoHS Compliant
Special Properties: Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Application: Bulk truck & railcar unloading, Material handling - heavy duty abrasive, Milling machine scrap recovery, Plastic processing equipment SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane
Reinforcement: Rigid PVC Gelix and Grounding Wire. Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Extra Thick Single-Ply Abrasion Resistant Polyurethane Tube - Our thickest single-ply polyurethane tube! designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
  • Grounding Wire - Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It's embedded within the rigid helix to prevent contamination of transferred materials.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
  • Oil Resistant Polyurethane Liner - Resists most animal and petroleum based oils.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
PF300X100 3" 76.2mm 3.39" 86.0mm 35 PSI 15 PSI 28 in. Hg 25 in. Hg 10" 100ft 1.50 lbs
PF400X100 4" 101.6mm 4.84" 123.0mm 30 PSI 15 PSI 28 in. Hg 25 in. Hg 12" 100ft 1.96 lbs
PF400X50 4" 101.6mm 4.84" 123.0mm 30 PSI 15 PSI 28 in. Hg 25 in. Hg 12" 50ft 1.96 lbs
PF500X100 5" 127.0mm 5.87" 149.0mm 30 PSI 15 PSI 25 in. Hg 22 in. Hg 13" 100ft 2.50 lbs
PF500X50 5" 127.0mm 5.87" 149.0mm 30 PSI 15 PSI 25 in. Hg 22 in. Hg 13" 50ft 2.50 lbs
PF600X100 6" 152.4mm 6.91" 175.5mm 30 PSI 15 PSI 25 in. Hg 22 in. Hg 16" 100ft 3.18 lbs
PF600X50 6" 152.4mm 6.91" 175.5mm 30 PSI 15 PSI 25 in. Hg 22 in. Hg 16" 50ft 3.18 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent. CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fitting or by other means.
