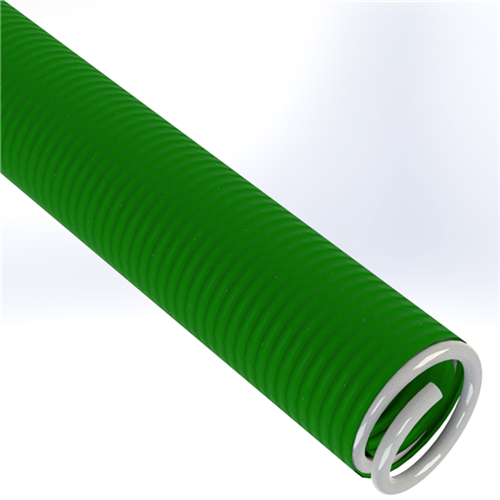

POLY-G-12.0 by Texcel | SIGMA-HD Series | Heavy-Duty Water Suction Hose | 12" Hose ID | 30 PSI | 29 in/Hg Vacuum Rated | Green

$2,154.30 - $2,648.25

$2,154.30

$1,914.93

$1,914.93 - $2,354.00

$1,914.93

SIGMA-HD by Texcel
GREEN PVC™ Series | Heavy-Duty Green PVC Water Suction Hose

Quantity

Specifications for Variant SKU: POLY-G-12.0-20 Texcel \| 20 \|
Brand:	SIGMA
Series:	SIGMA-HD Series
Hose Color(s):	Green
Internal Diameter:	12in
Outer Diameter:	13.39in
Tubing Construction:	PVC

Part Number	Hose ID	Hose OD	Working Pressure (psi/bar)	Vacuum (in./HG)	Bend Radius	Lbs./ft
SPVC-GR-1.5-100	1-1/2"	1.77"	100'	85 psi	29	4"	0.39 lbs
SPVC-GR-2.0-100	2"	2.24"	100'	70 psi	29	5"	0.57 lbs
SPVC-GR-2.5-100	2-1/2"	2.80"	100'	70 psi	29	6.5"	0.74 lbs
SPVC-GR-3.0-100	3"	3.27"	100'	65 psi	29	8.5"	0.94 lbs
SPVC-GR-4.0-100	4"	4.67"	100'	65 psi	29	12"	1.48 lbs
SPVC-GR-5.0-100	5"	5.51"	100'	50 psi	29	14"	2.15 lbs
SPVC-GR-6.0	6"	6.93"	-	50 psi	29	15"	2.89 lbs
SPVC-GR-8.0-20	8"	8.66"	20'	45 psi	29	20"	4.37 lbs
POLY-G-10.0-25	10"	11.34"	25'	30 psi	29	35"	7.45 lbs
POLY-G-12.0-25	12"	13.39"	25'	30 psi	29	40"	8.87 lbs
