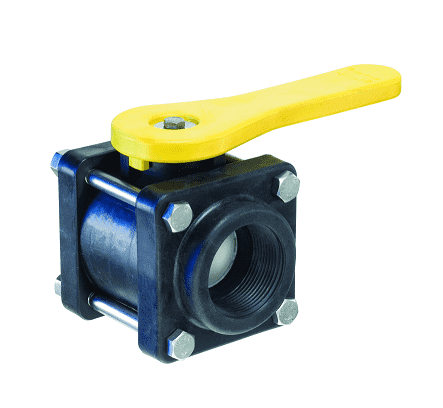

PPBV100 by Kuriyama | Ball Valve 4-Bolt Design | 1" Female NPT x 1" Female NPT | 150 PSI | Polypropylene

PPBV100 by Kuriyama | Ball Valve 4-Bolt Design | 1" Female NPT x 1" Female NPT | 150 PSI | Polypropylene

Save $13.05 Save $13.05
$45.68
$45.68 - $45.68
$45.68
$32.63
$32.63 - $32.63
$32.63

Kuriyama Couplings™ - Valves - Polypropylene Ball Valve - 4 or 6 Bolt Design

Specifications for Variant SKU: PPBV100 Kuriyama
Shape (Orientation): Straight
Ends Configuration: 1in Female NPT, 1in Female NPT
Material(s): Polypropylene
Seal Material(s): Viton/FKM
Applications:
Features:
  • Full port.
  • Stainless steel bolts and nuts.
  • Teflon seals.
  • Viton O-Ring stems and seals.
  • Polypropylene material is glass filled for extra strength
  • Female NPT threads
Materials:
  • N/A
Part Number Bolt Design Female NPT x Female NPT PSI Rating @ 70 deg. F (+21 deg. C) Weight (Lbs.)
PPBV050 4-Bolt Design 1/2" x 1/2" 150 PSI 0.88 lbs
PPBV050 4-Bolt Design 1/2" x 1/2" 150 PSI 0.88 lbs
PPBV075 4-Bolt Design 3/4" x 3/4" 150 PSI 0.85 lbs
PPBV100 4-Bolt Design 1" x 1" 150 PSI 1.16 lbs
PPBV125 4-Bolt Design 1-1/4" x 1-1/4" 150 PSI 1.65 lbs
PPBV150 4-Bolt Design 1-1/2" x 1-1/2" 150 PSI 1.67 lbs
PPBV200 6-Bolt Design 2" x 2" 150 PSI 3.71 lbs
PPBV300 6-Bolt Design 3" x 3" 100 PSI 6.6 lbs
PPBV400 6-Bolt Design 4" x 4" 100 PSI 9.9 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
