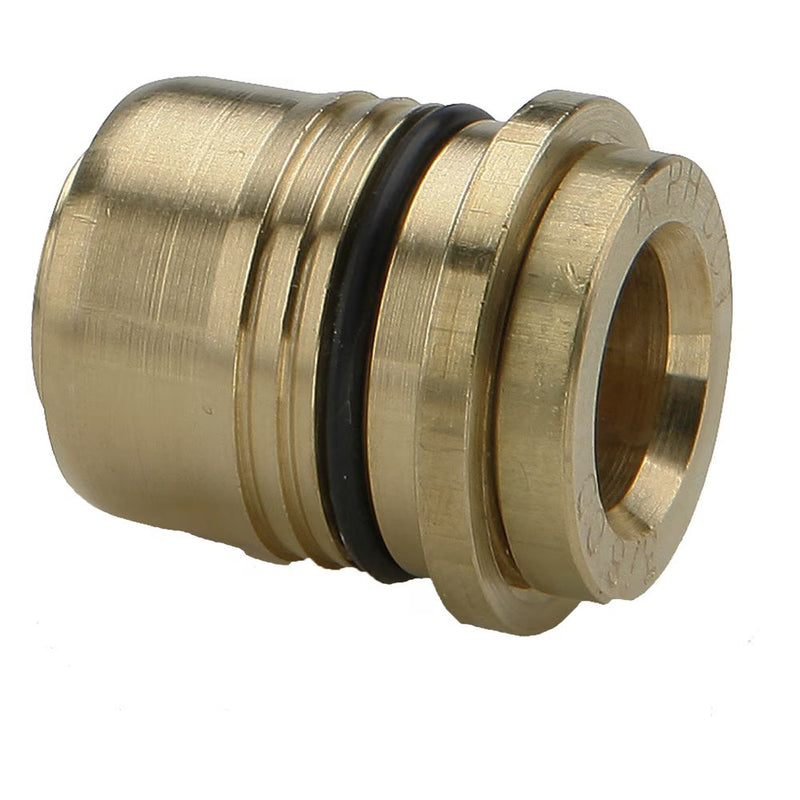

PTCCE-8 by Parker | SAE Encapsulated Cartridge | 1/2" Tube Size | .88" Length | Brass | Pack of 10

PTCCE-8 by Parker | SAE Encapsulated Cartridge | 1/2" Tube Size | .88" Length | Brass | Pack of 10

Save $11.57 Save $11.57
$141.04
$141.04 - $141.04
$141.04
$129.47
$129.47 - $129.47
$129.47

by Parker Hannifin
Cartridges:PTCCE SAE Encapsulated Cartridge

Package Quantity: 10 Units

Specifications for Variant SKU: PTCCE-8 Parker | 10 |
Series: PTCCE Series
Shape (Orientation): No Orientation
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Life Science
Product Features:
  • Self-centering of the cartridge in the cavity
  • Push-in connection
  • Designed for automation assembly process
  • SAE & NSF cartridges available
Markets:
  • Industrial
  • Pneumatic
  • Filtration
  • Semi-Conductor
    • C
  • Life Science
  • Automation
  • Heavy Duty Truck
Applications:
  • Air
  • Water
  • Beverage Dispensing
  • Cab Controls
  • Packaging
  • Labeling
  • Vacuum
Specifications:
Seals Pressure Temperature
Carstick Nitrile Up to 290 PSI (20 bar) -4° to +175° F (-20° to +79.4° C)
PLM/PLS FKM Up to 435 PSI (30 bar) -13° to +302° F (-25° to +150° C)
LIQUIfit EPDM Up to 230 PSI (15.9 bar) 35° to +200° F (+1.7° to +93.3° C)
TrueSeal EPDM Up to 150 PSI (10.3 bar) -20° to +180° F (-28.9° to +82.2° C)
PTC Nitrile Up to 250 PSI (17.2 bar) -40° to +200° F (-40° to +93.3° C
Part Number Tube Size Cavity Size ±.002 L M OD Flow Diameter (D)
PTCCE-4 1/4" .504" .63" .43" .56" .13"
PTCCE-6 3/8" .650" .69" .48" .73" .22"
PTCCE-6-8 3/8" .775" .71" .50" .88" .22"
PTCCE-8 1/2" .775" .91" .69" .88" .34"
