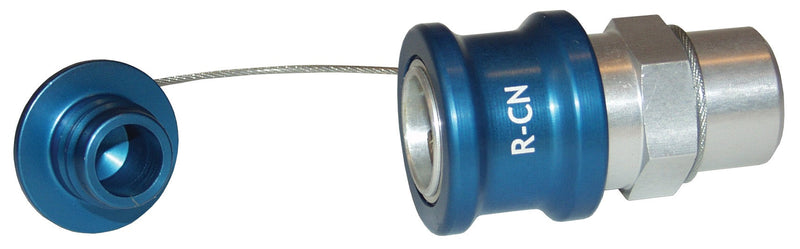

R-CN-P by Dixon Valve | FloMAX R-Series (Roll-Pin Style) | Coolant Fluid Nozzle with Plug | 1/2" Female NPT | Teal/Blue | Anodized Aluminum

Save $215.10

$537.75

$537.75 - $537.75

$537.75

$322.65

$322.65 - $322.65

$322.65

Dixon Valve
FloMAX R-Series (Roll-Pin Style) | Coolant Fluid Nozzle

Fully compatible and interchangeable with industry standards.

Specifications for Variant SKU: R-CN-P Dixon
Brand:	FloMAX
Series:	R-CN Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female NPT
Material(s):	Anodized Aluminum

Features:
Bright Teal. Standard roll-pin locking mechanism. Ergonomically engineered pullback.
Construction:
All-metal construction. Anodized aircraft grade aluminum non-wear components.

Coolant Fluid Nozzles
Part Number	Description	Thread Size	Cross Over Part Numbers
Part Number	Description	Thread Size	Caterpillar®	Wiggins	FastFill
R-CN	Coolant Fluid Nozzle	1/2" Female NPT	-	R11	N200R
R-CN-P	Coolant Fluid Nozzle with Plug	1/2" Female NPT	-	-	N200RP
R-CN-PLUG	Coolant Fluid Nozzle Plug	-	-	R1107	P200R

Coolant Fluid Receivers
Part Number	Description	Male Thread Size	Female Thread Size	Cross Over Part Numbers
Part Number	Description	Male Thread Size	Female Thread Size	Caterpillar®	Wiggins	FastFill
R-CR	Coolant Fluid Receiver	1.187-12 UN-2A	.875-14 UN-2B	-	R12	R200R
R-CR-C	Coolant Fluid Receiver with Cap	1.187-12 UN-2A	.875-14 UN-2B	-	-	R200RC
R-CR-CAP	Coolant Fluid Receiver Cap	-	-	-	R1205	C200R
