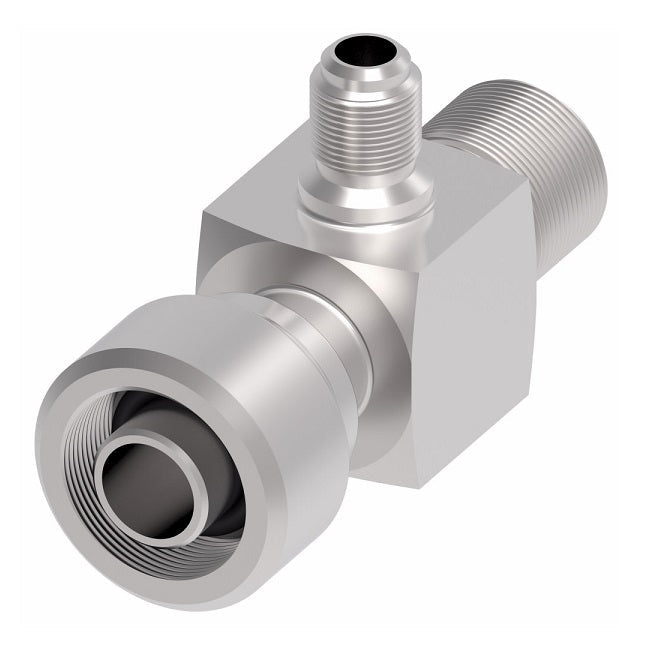

R12-Z58 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter with R12 High Service Port | 1/2" Tube Size | Steel

R12-Z58 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter with R12 High Service Port | 1/2" Tube Size | Steel

Name: R12-Z58 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter with R12 High Service Port | 1/2" Tube Size | Steel
Brand: Danfoss/Eaton
SKU: R12-Z58 Danfoss
Price: 52.3 USD
Availability: InStock

$52.30 - $52.30

$52.30

$52.30 - $52.30

$52.30

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Adapter - Bumped Tube O-Ring Service Port Adapter with R12 Service Port

Specifications for Variant SKU: R12-Z58 Danfoss
Brand:	Weatherhead
Series:	757 'E' Series
Shape (Orientation):	Straight
Material(s):	Steel
Compatible with the following Series:	H757 Series

Applications:
Used with R134a and R12 applications. Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
Determined by hose burst pressure.
Material:
Carbon steel Plating: Zinc; clear trivalent chromate
Compatible Hose:
H757


Steel Part Number	Tube Size	Thread Size G	Port	Length A	Across Flats	Hex F	Service Port Thread
R12-Z56	3/8"	5/8-18	High Service Port	2.02"	5/8"	3/4"	3/8-24
R12-Z58	1/2"	3/4-16	High Service Port	2.22"	7/8"	7/8"	3/8-24
R12-Z60	5/8"	7/8-14	Low Service Port	2.63"	7/8"	1-1/16"	3/8-24

Note: Drawings may differ from actual parts.
