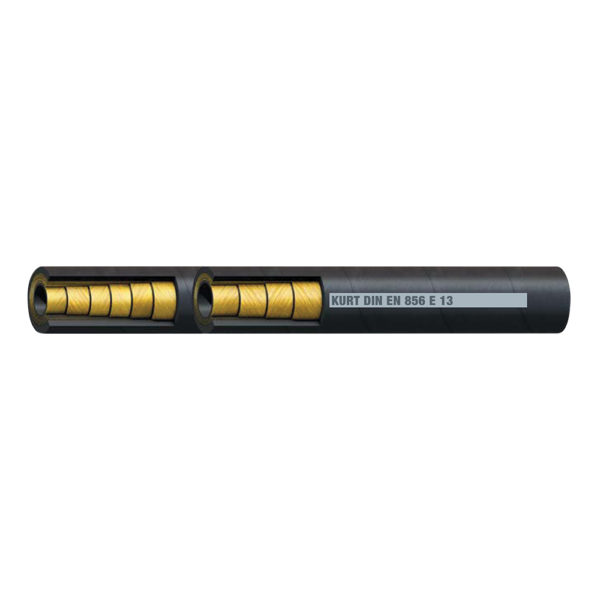

R13-12 by Kurt Hydraulics | SAE 100R13 | 4-Spiral Layer Hydraulic Hose | 131' Reel Length

Save $117.46

$1,057.17

$1,057.17 - $1,057.17

$1,057.17

$939.71

$939.71 - $939.71

$939.71

by Kurt Hydraulics
SAE R13 DIN EN 856 Hydraulic Hose

Kurt Fittings and Hose should only be used together.

Package Quantity: 131 Feet

Quantity

Specifications for Variant SKU: R13-12 Kurt \| 131 \|
Dash Size:	-12
Internal Diameter:	0.75in
Outer Diameter:	1.26in
Tubing Construction:	Synthetic Rubber
Cover Construction:	Synthetic Rubber

Part Number	Hose I.D. (In)	Hose O.D. (In	Rated W.P. (PSI)	Min. Burst (PSI)	Min. Bend (In)	Weight (Lbs/Ft)
R13-12	3/4"	1.26"	1000	20000	9.5"	1.05
R13-16	1"	1.51"	1000	20000	12"	1.32
R13-20	1-1/4"	1.94"	1000	20000	16.5"	2.46
R13-24	1-1/2"	2.26"	1000	20000	20"	3.16
R13-32	2"	2.82"	1000	20000	21"	4.78

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
