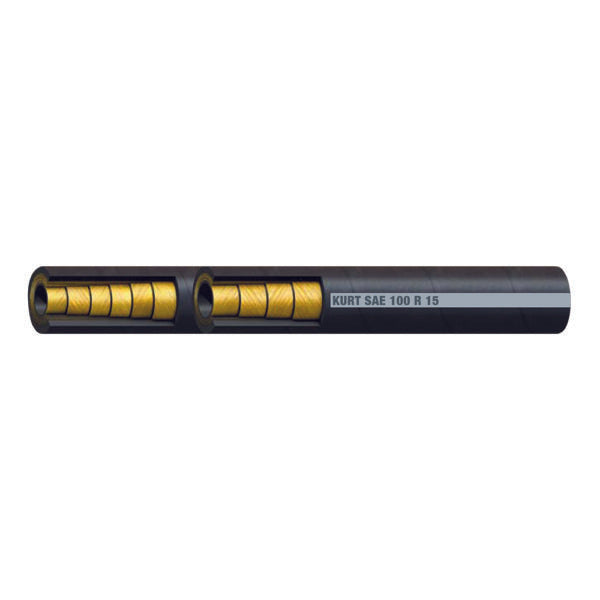

R15-12 by Kurt Hydraulics | SAE 100R15 | 4-Spiral Layer Hydraulic Hose | 100' Reel Length

Save $95.83

$862.50

$862.50 - $862.50

$862.50

$766.67

$766.67 - $766.67

$766.67

by Kurt Hydraulics
SAE R15 DIN EN 856 Hydraulic Hose

Kurt Fittings and Hose should only be used together.

Package Quantity: 100 Feet

Quantity

Specifications for Variant SKU: R15-12 Kurt \| 100 \|
Dash Size:	-12
Internal Diameter:	0.75in
Outer Diameter:	1.42in
Tubing Construction:	Synthetic Rubber
Cover Construction:	Synthetic Rubber

Part Number	Hose I.D. (In)	Hose O.D. (In)	Rated W.P. (PSI)	Min. Burst (PSI)	Min. Bend (In)	Weight (Lbs/Ft)
R15-12	3/4"	1.26"	6000	24000	10.5"	1.68
R15-16	1"	1.51"	6000	24000	13"	1.79
R15-20	1-1/4"	1.94"	6000	24000	17.5"	2.43
R15-24	1-1/2"	2.26"	6000	24000	21"	3.17

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
