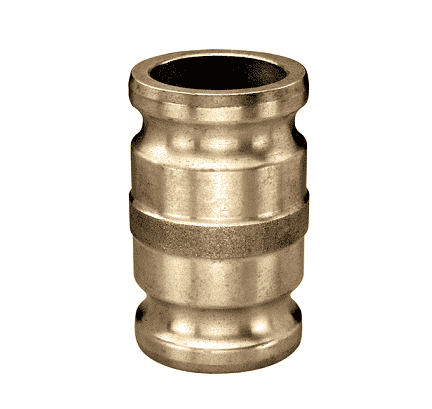

SA-B400 by Kuriyama | Quick-Acting Special Application Coupling | Part B | 4" Spool Adapter | Brass

SA-B400 by Kuriyama | Quick-Acting Special Application Coupling | Part B | 4" Spool Adapter | Brass

Save $60.70 Save $60.70
$212.44
$212.44 - $212.44
$212.44
$151.74
$151.74 - $151.74
$151.74

Kuriyama Couplings™ - Quick-Acting Special Application Couplings - Part B - Spool Adapter - Brass

Specifications for Variant SKU: SA-B400 Kuriyama
Shape (Orientation): Straight
Cam Type: Type AA (Spool Adapter)
Ends Configuration: 4in Male Cam & Groove, 4in Male Cam & Groove, Some Ends Match
Material(s): Brass
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Brass alloy is specially designed for high tensile strength and rigidity.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
Materials:
  • ASTM B584 Grade C85700 brass alloy.
  • Forged brass handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Zinc-plated carbon steel safety clips
  • Buna-N Gaskets
Part Number Size Weight (Lbs.)
SA-B150 1-1/2" x 1-1/2" 1.35 lbs
SA-B200 2" x 2" 2.11 lbs
SA-B250 2-1/2" x 2-1/2" 3.55 lbs
SA-B300 3" x 3" 3.69 lbs
SA-B400 4" x 4" 5.97 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
