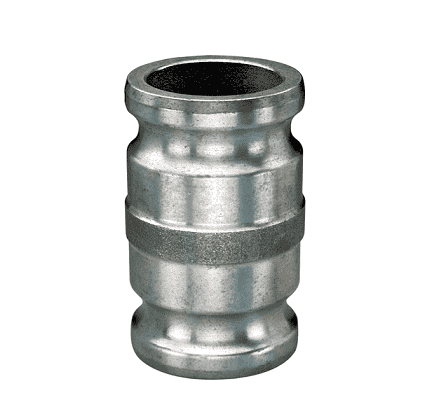

SA-SS1520 by Kuriyama | Quick-Acting Special Application Coupling | 1-1/2" x 2" Spool Adapter | 316 Stainless Steel

SA-SS1520 by Kuriyama | Quick-Acting Special Application Coupling | 1-1/2" x 2" Spool Adapter | 316 Stainless Steel

Save $14.07 Save $14.07
$74.10
$74.10 - $74.10
$74.10
$60.03
$60.03 - $60.03
$60.03

Kuriyama Couplings™ - Quick-Acting Special Application Couplings - Spool Adapter - 316 Stainless Steel

Specifications for Variant SKU: SA-SS1520 Kuriyama
Shape (Orientation): Straight
Cam Type: Type AA (Spool Adapter)
Ends Configuration: 1-1/2in Male Cam & Groove, 2in Male Cam & Groove
Material(s): 316 Stainless Steel
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Stainless steel alloy chemical composition is analyzed on every melt.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
  • Composition test certificate is available upon request.
Materials:
  • ASTM A666 316 stainless steel alloy.
  • Type 304 stainless steel handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Type 304 stainless steel safety clips.
  • Buna-N Gaskets
Part Number Size Weight (Lbs.)
SA-SS150 1-1/2" x 1-1/2" 1.76 lbs
SA-SS1520 1-1/2" x 2" 2.1 lbs
SA-SS200 2" x 2" 2.48 lbs
SA-SS2030 2" x 3" 3.14 lbs
SA-SS300 3" x 3" 4.61 lbs
SA-SS3040 3" x 4" 5.28 lbs
SA-SS400 4" x 4" 7.28 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
