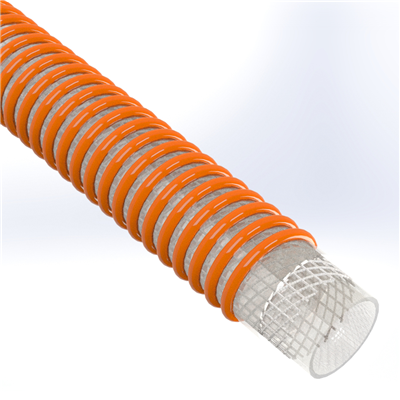

SPVC-AQUA-12.0 by Texcel | SIGMA-PVC AQUA™ Series | Water Suction Hose | 12" Hose ID | 28 PSI | 28 in/Hg Vacuum Rated | Clear/Orange

SPVC-AQUA-12.0 by Texcel | SIGMA-PVC AQUA™ Series | Water Suction Hose | 12" Hose ID | 28 PSI | 28 in/Hg Vacuum Rated | Clear/Orange

$143.94 - $2,399.10
$143.94
$127.95
$127.95 - $2,132.53
$127.95

SIGMA-PVC by Texcel
AQUA™ Series | PVC Water Suction Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: SPVC-AQUA-12.0-20 Texcel | 20 |
Brand: SIGMA
Series: SIGMA-PVC AQUA™ Series
Hose Color(s): Clear/Orange
Internal Diameter: 12in
Outer Diameter: 13.80in
Tubing Construction: PVC
Cover Construction: PVC
Special Properties: Outer Helix Protection
Technical Data:
Description: Heavy-duty suction and discharge hose for use in a variety of industries, such as rental pumping equipment and applications where the hose needs to slide easily, or visual confirmation of material flow is necessary. Construction: Clear, flexible PVC with synthetic yarn and an orange, rigid PVC, right-handed helix
Safety Factor: 3:1 Temperature: -4°F to +150°F
Branding: 3:1 Branding: TEXCEL® SIGMA-PVC AQUA™ - WATER SUCTION HOSE - XXXPSI WP-LOT
Compared To: SR/WST Safety Note: Service temperature depends on actual application
Part Number Hose ID Hose OD Working Pressure (psi) Vacuum (in./HG) Bend Radius Lbs./ft
SPVC-AQUA-1.5 1-1/2" 2.03" 100 psi 28 3" 0.47 lbs
SPVC-AQUA-2.0 2" 2.62" 100 psi 28 4" 0.71 lbs
SPVC-AQUA-3.0 3" 3.71" 100 psi 28 6" 1.14 lbs
SPVC-AQUA-4.0 4" 4.80" 75 psi 28 7" 1.75 lbs
SPVC-AQUA-5.0 5" 6.05" 70 psi 28 9" 3.00 lbs
SPVC-AQUA-6.0 6" 7.17" 70 psi 28 10" 3.90 lbs
SPVC-AQUA-8.0 8" 9.33" 70 psi 28 16" 5.56 lbs
SPVC-AQUA-10.0 10" 10.86" 40 psi 28 25" 8.68 lbs
SPVC-AQUA-12.0 12" 13.8" 28 psi 25 45" 10.30 lbs
