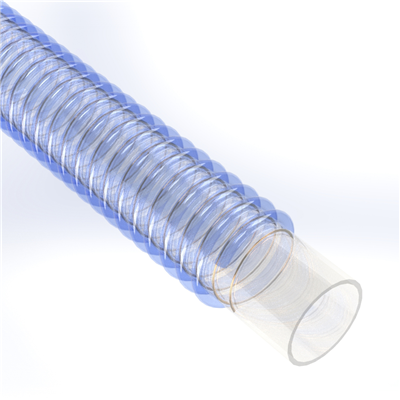

SPVC-FD-6.0 by Texcel | SIGMA-FD™ Series | FDA PVC Food-Grade Suction Hose | 6" Hose ID | 30 PSI | 25 in/Hg Vacuum Rated | Blue

SPVC-FD-6.0 by Texcel | SIGMA-FD™ Series | FDA PVC Food-Grade Suction Hose | 6" Hose ID | 30 PSI | 25 in/Hg Vacuum Rated | Blue

$531.90 - $2,659.50
$531.90
$472.80
$472.80 - $2,364.00
$472.80

SIGMA by Texcel
FD™ Series | FDA PVC Food-Grade Suction Hose
Specifications for Variant SKU: SPVC-FD-6.0-20- Texcel | 20 |
Brand: SIGMA
Series: SIGMA-FD™ Series
Hose Color(s): Blue
Internal Diameter: 6in
Outer Diameter: 6.73in
Tubing Construction: PVC
Special Properties: Outer Helix Protection
Technical Data:
Description: Heavy-duty, food-grade suction hose for dry/wet material applications. Hose complies with applicable FDA and 3A requirements as well as USDA for use in meat and poultry plants. Clear PVC and clear helix construction allows for visual confirmation of material flow. Smooth bore eliminates material build up. Heavy corrugation provides high flexibility. Construction: Corrugated, clear, flexible PVC with smooth bore and a rigid, clear PVC, right-handed helix
Safety Factor: 3:1 Temperature: -4°F to +150°F
Branding: TEXCEL® SIGMA-FD™ - FOOD GRADE SUCTION HOSE - -LOT Compared To: WT/200 SFG
Safety Note: Service temperature depends on actual application
It is recommended that all food grade hose be thoroughly flushed prior to initial use		 Features: FDA, USDA and 3A compliant. Phthalate Free
Part Number Hose ID Hose OD Std. Length Working Pressure (psi) Vacuum (in./HG) Bend Radius Lbs./Ft.
SPVC-FD-1.5-100 1-1/2" 1.82" 100' 45 29 2.5" 0.35 lbs
SPVC-FD-2.0-100 2" 2.35" 100' 40 29 3" 0.50 lbs
SPVC-FD-2.5-100 2-1/2" 2.87" 100' 35 29 5" 0.68 lbs
SPVC-FD-3.0-100 3" 3.50" 100' 35 29 6" 1.02 lbs
SPVC-FD-4.0-100 4" 4.63" 100' 30 29 8" 1.52 lbs
SPVC-FD-5.0-100 5" N/A 100' N/A N/A N/A N/A
SPVC-FD-6.0 6" 6.73" - 30 25 12" 3.05 lbs
SPVC-FD-8.0-20 8" 9.04" 20' 20 25 16" 5.32 lbs
