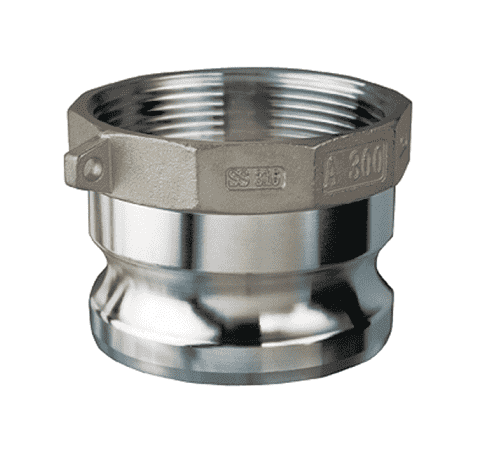

SS-A500 by Kuriyama | Quick-Acting Coupling | Part A | 5" Male Adapter x 5" Female NPT | 316 Stainless Steel

SS-A500 by Kuriyama | Quick-Acting Coupling | Part A | 5" Male Adapter x 5" Female NPT | 316 Stainless Steel

Save $77.74 Save $77.74
$272.09
$272.09 - $272.09
$272.09
$194.35
$194.35 - $194.35
$194.35

Kuriyama Couplings™ - Quick-Acting Couplings - Part A - Male Adapter x Female NPT - 316 Stainless Steel

Specifications for Variant SKU: SS-A500 Kuriyama
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: 5in Male Cam & Groove, 5in Female NPT
Material(s): 316 Stainless Steel
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Stainless steel alloy chemical composition is analyzed on every melt.
  • Composition test certificate is available upon request.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
Materials:
  • ASTM A666 316 stainless steel alloy.
  • Type 304 stainless steel handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Type 304 stainless steel safety clips.
  • Buna-N Gaskets.
Part Number Size Weight (Lbs.)
SS-A050 1/2 x 1/2" 0.20 lbs
SS-A075 3/4" x 3/4" 0.26 lbs.
SS-A100 1" x 1" 0.34 lbs.
SS-A125 1-1/4" x 1-1/4" 0.62 lbs.
SS-A150 1-1/2" x 1-1/2" 0.80 lbs.
SS-A200 2" x 2" 1.12 lbs.
SS-A250 2-1/2" x 2-1/2" 1.76 lbs.
SS-A300 3" x 3" 2.16 lbs.
SS-A400 4" x 4" 2.88 lbs.
SS-A500 5" x 5" 4.30 lbs.
SS-A600 6" x 6" 6.00 lbs.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
