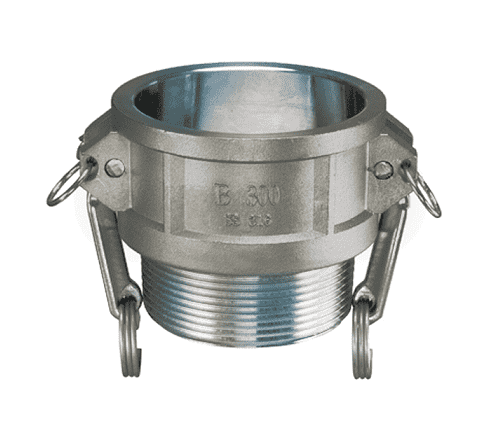

SS-B300 by Kuriyama | Quick-Acting Coupling | Part B | 3" Female Coupler x 3" Male NPT | 316 Stainless Steel

SS-B300 by Kuriyama | Quick-Acting Coupling | Part B | 3" Female Coupler x 3" Male NPT | 316 Stainless Steel

Save $2.90 Save $2.90
$103.74
$103.74 - $103.74
$103.74
$100.84
$100.84 - $100.84
$100.84

Kuriyama Couplings™ - Quick-Acting Couplings - Part B - Female Coupler x Male NPT - 316 Stainless Steel

Specifications for Variant SKU: SS-B300 Kuriyama
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 3in Female Cam & Groove, 3in Male NPT
Material(s): 316 Stainless Steel, 304 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Material Handling, Irrigation, Fracking
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Stainless steel alloy chemical composition is analyzed on every melt.
  • Composition test certificate is available upon request.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
Materials:
  • ASTM A666 316 stainless steel alloy.
  • Type 304 stainless steel handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Type 304 stainless steel safety clips.
  • Buna-N Gaskets.
Part Number Size Weight (Lbs.)
SS-B050 1/2 x 1/2" 0.30 lbs
SS-B075 3/4" x 3/4" 0.42 lbs.
SS-B100 1" x 1" 0.64 lbs.
SS-B125 1-1/4" x 1-1/4" 1.32 lbs.
SS-B150 1-1/2" x 1-1/2" 1.50 lbs.
SS-B200 2" x 2" 1.92 lbs.
SS-B250 2-1/2" x 2-1/2" 2.68 lbs.
SS-B300 3" x 3" 3.20 lbs.
SS-B400 4" x 4" 6.58 lbs.
SS-B500 5" x 5" 6.80 lbs.
SS-B600 6" x 6" 10.98 lbs.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
