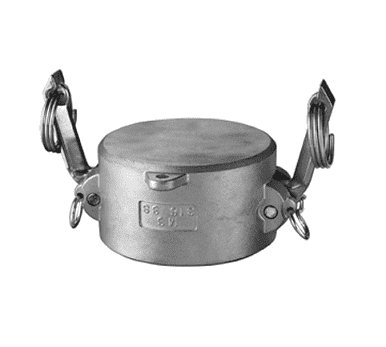

SS304-DC125 by Kuriyama | Quick-Acting Coupling | Part DC | 1-1/4" Dust Cap | 304 Stainless Steel

Name: SS304-DC125 by Kuriyama | Quick-Acting Coupling | Part DC | 1-1/4" Dust Cap | 304 Stainless Steel
Brand: Kuriyama
SKU: SS304-DC125 Kuriyama
Price: 18.8 USD
Availability: InStock

Save $4.41

$23.21

$23.21 - $23.21

$23.21

$18.80

$18.80 - $18.80

$18.80

Kuriyama Couplings™ - Quick-Acting Couplings - Part DC - Dust Cap - 304 Stainless

Quantity

Specifications for Variant SKU: SS304-DC125 Kuriyama
Cam Type:	Type DC
Ends Configuration:	1-1/4in Female Cam & Groove
Material(s):	304 Stainless Steel

Applications:
Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling For use with Kuriyama Hoses
Features:
All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability. 5" Size complies with ASTM specs for interchangeability. 1/2" x 1/2" are not specified under Mil Specs. Stainless steel alloy chemical composition is analyzed on every melt. Composition test certificate is available upon request. Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
Materials:
ASTM A666 304 Stainless steel alloy. Type 304 stainless steel handles. Type 304 stainless steel handle pins. Type 304 stainless steel pull rings. Type 304 stainless steel safety clips. Buna-N Gaskets.

Part Number	Size	Weight (Lbs.)
SS304-DC050	1/2"	0.25 lbs
SS304-DC075	3/4"	0.36 lbs.
SS304-DC100	1"	0.54 lbs.
SS304-DC125	1-1/4"	1.30 lbs.
SS304-DC150	1-1/2"	1.46 lbs.
SS304-DC200	2"	1.78 lbs.
SS304-DC250	2-1/2"	2.38 lbs.
SS304-DC300	3"	3.04 lbs.
SS304-DC400	4"	5.02 lbs.
SS304-DC500	5"	7.35 lbs.
SS304-DC600	6"	9.92 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
