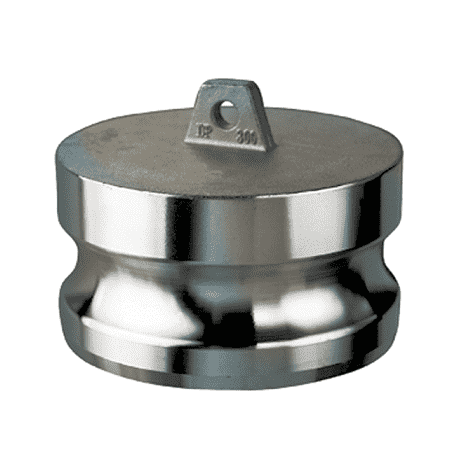

SS304-DP200 by Kuriyama | Quick-Acting Coupling | Part DP | 2" Dust Plug | 304 Stainless Steel

Name: SS304-DP200 by Kuriyama | Quick-Acting Coupling | Part DP | 2" Dust Plug | 304 Stainless Steel
Brand: Kuriyama
SKU: SS304-DP200 Kuriyama
Price: 18.08 USD
Availability: InStock

Save $7.23

$25.31

$25.31 - $25.31

$25.31

$18.08

$18.08 - $18.08

$18.08

Kuriyama Couplings™ - Quick-Acting Couplings - Part DP - Dust Plug - 304 Stainless

Specifications for Variant SKU: SS304-DP200 Kuriyama
Cam Type:	Type DP
Ends Configuration:	2in Female Cam & Groove
Material(s):	304 Stainless Steel

Applications:
Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling For use with Kuriyama Hoses
Features:
All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability. 5" Size complies with ASTM specs for interchangeability. 1/2" x 1/2" are not specified under Mil Specs. Stainless steel alloy chemical composition is analyzed on every melt. Composition test certificate is available upon request. Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
Materials:
ASTM A666 304 Stainless steel alloy. Type 304 stainless steel handles. Type 304 stainless steel handle pins. Type 304 stainless steel pull rings. Type 304 stainless steel safety clips. Buna-N Gaskets.

Part Number	Size	Weight (Lbs.)
SS304-DP050	1/2"	0.15 lbs
SS304-DP075	3/4"	0.20 lbs.
SS304-DP100	1"	0.28 lbs.
SS304-DP125	1-1/4"	0.60 lbs.
SS304-DP150	1-1/2"	0.72 lbs.
SS304-DP200	2"	0.96 lbs.
SS304-DP250	2-1/2"	1.47 lbs.
SS304-DP300	3"	1.94 lbs.
SS304-DP400	4"	3.36 lbs.
SS304-DP500	5"	6.24 lbs.
SS304-DP600	6"	9.08 lbs.
