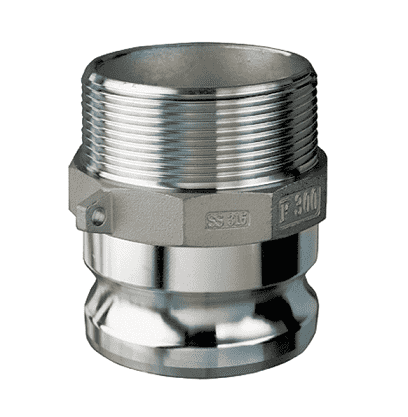

SS304-F500 by Kuriyama | Quick-Acting Coupling | Part F | 5" Male Adapter x 5" Male NPT | 304 Stainless Steel

SS304-F500 by Kuriyama | Quick-Acting Coupling | Part F | 5" Male Adapter x 5" Male NPT | 304 Stainless Steel

Save $36.87 Save $36.87
$194.04
$194.04 - $194.04
$194.04
$157.17
$157.17 - $157.17
$157.17

Kuriyama Couplings™ - Quick-Acting Couplings - Part F - Male Adapter x Male NPT - 304 Stainless

Specifications for Variant SKU: SS304-F500 Kuriyama
Shape (Orientation): Straight
Cam Type: Type F
Ends Configuration: 5in Male Cam & Groove, 5in Male NPT
Material(s): 304 Stainless Steel
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Stainless steel alloy chemical composition is analyzed on every melt.
  • Composition test certificate is available upon request.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
Materials:
  • ASTM A666 304 Stainless steel alloy.
  • Type 304 stainless steel handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Type 304 stainless steel safety clips.
  • Buna-N Gaskets.
Part Number Size Weight (Lbs.)
SS304-F050 1/2 x 1/2" 0.30 lbs
SS304-F075 3/4" x 3/4" 0.40 lbs.
SS304-F100 1" x 1" 0.56 lbs.
SS304-F125 1-1/4" x 1-1/4" 1.06 lbs.
SS304-F150 1-1/2" x 1-1/2" 1.28 lbs.
SS304-F200 2" x 2" 1.82 lbs.
SS304-F250 2-1/2" x 2-1/2" 2.68 lbs.
SS304-F300 3" x 3" 3.92 lbs.
SS304-F400 4" x 4" 6.32 lbs.
SS304-F500 5" x 5" 8.26 lbs.
SS304-F600 6" x 6" 11.27 lbs.
