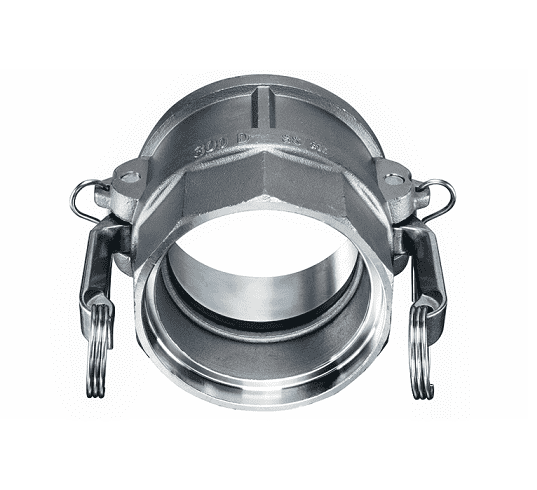

SW-SSD600 by Kuriyama | Quick-Acting Welding Coupling | Part D | 6" Female Coupler | 316 Stainless Steel

SW-SSD600 by Kuriyama | Quick-Acting Welding Coupling | Part D | 6" Female Coupler | 316 Stainless Steel

Save $69.76 Save $69.76
$367.17
$367.17 - $367.17
$367.17
$297.41
$297.41 - $297.41
$297.41

Kuriyama Couplings™ - Quick-Acting Weld Couplings - Part D - Female Coupler x Socket Weld - 316 Stainless Steel

Specifications for Variant SKU: SW-SSD600 Kuriyama
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 6in Female Cam & Groove, 6in Weld End
Material(s): 316 Stainless Steel, 304 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • SW Items are Designed for Socket Weld to Schedule 40 Pipe
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for material and interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Stainless steel alloy chemical composition is analyzed on every melt.
  • Composition test certificate is available upon request.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
Materials:
  • ASTM A666 316 stainless steel alloy.
  • Type 304 stainless steel handles.
  • Type 304 stainless steel handle pins.
  • Zinc-plated carbon steel pull rings.
  • Type 304 stainless steel safety clips.
  • Buna-N Gaskets
Part Number Size Weight (Lbs.)
SW-SSD150 1-1/2" x 1-1/2" 1.41 lbs
SW-SSD200 2" x 2" 1.7 lbs
SW-SSD250 2-1/2" x 2-1/2" 2.35 lbs
SW-SSD300 3" x 3" 3.3 lbs
SW-SSD400 4" x 4" 5.32 lbs
SW-SSD500 5" x 5" 7.81 lbs
SW-SSD600 6" x 6" 20.79 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
