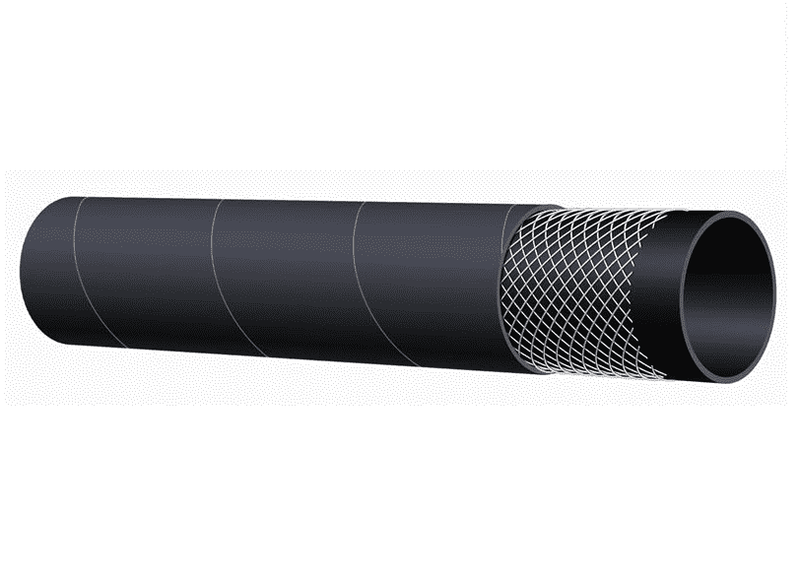

T253AA150X100 Kuriyama Alfagomma EPDM Layflat Water Discharge Hose - Black - 1-1/2" ID - 1.81" OD - 150 PSI - 100ft

T253AA150X100 Alfagomma by Kuriyama | Layflat Water Discharge Hose | Black | 1-1/2" ID | 1.81" OD | 150 PSI | EPDM | 100ft Length

Save $150.25 Save $150.25
$525.88
$525.88 - $525.88
$525.88
$375.63
$375.63 - $375.63
$375.63

Kuriyama Alfagomma® T253AA Series EPDM Layflat Water Discharge Hose - Black

Package Quantity: 100 FT

Specifications for Variant SKU: T253AA150X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T253AA Series
Hose Color(s): Black
Internal Diameter: 1.50in
Outer Diameter: 1.81in
Tubing Construction: SBR
Cover Construction: SBR

SPECIFICATIONS

Application: High pressure, 150 PSI lay flat type hose for general industrial construction and irrigation. SAE Rating: N/A
Other Ratings: N/A Tube: Black EPDM.
Reinforcement: High tensile textile cords. Cover: Black EPDM - abrasion and ozone-resistant.
Temperature Range: -22 deg. F (-30 deg. C) to 176 deg. F (+80 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Branding: Alfagomma - Italy - T253 10 Bar (150 PSI) EPDM WATER DISCHARGE (in green letters)
  • Coupling Suggestions:Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Part Number Nominal ID Nominal OD Max Rec. Working Pressure Standard Length Weight
(in.) (mm) (in.) (mm) PSI (ft.) (lbs./ft.)
T253AA150X100 1-1/2" 38mm 1.81" 46mm 150 PSI 100ft 0.37 lbs
T253AA200X100 2" 51mm 2.32" 59mm 150 PSI 100ft 0.50 lbs
T253AA250X100 2-1/2" 63mm 2.80" 71mm 150 PSI 100ft 0.60 lbs
T253AA300X100 3" 76mm 3.31" 84mm 150 PSI 100ft 0.86 lbs
T253AA400X100 4" 102mm 4.33" 110mm 150 PSI 100ft 1.19 lbs
T253AA600X100 6" 152mm 6.38" 162mm 150 PSI 100ft 2.00 lbs
T253AA600X50 6" 152mm 6.38" 162mm 150 PSI 50ft 2.00 lbs
T253AA662X100* 6-5/8" 168mm 7.01" 178mm 150 PSI 100ft 2.17 lbs
T253AA662X50* 6-5/8" 168mm 7.01" 178mm 150 PSI 50ft 2.17 lbs
T253AA800X100 8" 203mm 8.46" 215mm 150 PSI 100ft 2.82 lbs
T253AA800X50 8" 203mm 8.46" 215mm 150 PSI 50ft 2.82 lbs
T253AA1000X100 10" 254mm 10.63" 270mm 150 PSI 100ft 5.11 lbs
T253AA1000X50 10" 254mm 10.63" 270mm 150 PSI 50ft 5.11 lbs
T253AA1200X50 12" 305mm 12.56" 319mm 150 PSI 100ft 5.93 lbs
* 65/8" referred to as Elephant Trunk Hose - Ideal for "Irrigation Boots."
