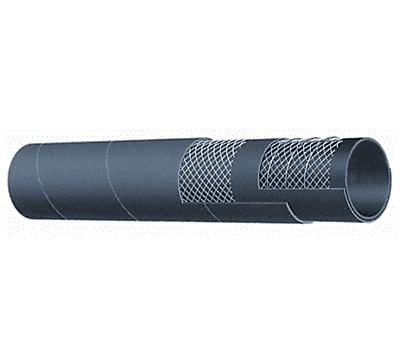

T600AA225X50 Kuriyama Alfagomma Hard Wall Marine Exhaust Hose USCG/SAE J1527 B2 - Black - 2-1/4" ID - 2.64" OD - 75 PSI - 50ft

T600AA225X50 Alfagomma by Kuriyama | Hard Wall Marine Exhaust Hose | USCG/SAE J1527 B2 | Black | 2-1/4" ID | 2.64" OD | 75 PSI | 50ft Length

Save $15.65 Save $15.65
$567.41
$567.41 - $567.41
$567.41
$551.76
$551.76 - $551.76
$551.76

Kuriyama Alfagomma® T600AA Series Hard Wall Marine Exhaust Hose USCG/SAE J1527 B2 - Black

Package Quantity: 50 FT

Specifications for Variant SKU: T600AA225X50 Kuriyama | 50 |
Brand: Alfagomma
Series: T600AA Series
Hose Color(s): Black
Internal Diameter: 2.25in
Outer Diameter: 2.64in
Tubing Construction: Nitrile
Cover Construction: Nitrile/PVC Blend
Applicable Specs & Approvals: SAE J12527_202201

SPECIFICATIONS

Application: Fuel, oil and hydraulic fluids suction and discharge. Suitable for exhaust gas from water cooled stationary or marine diesel engines. Offers maximum flexibility. SAE Rating: N/A
Other Ratings: N/A Tube: Black NBR - exhaust gas, fuel and fire resistant.
Reinforcement: High tensile textile cords and 4 highly flexible steel helix wires. Cover: Black NBR/PVC blend - abrasion, ozone, hydrocarbon and fire resistant.
Temperature Range: -4 deg. F (-20 deg. C) to 212 deg. F (+100 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Branding:ALFAGOMMA - ITALY T600 MARINE EXHAUST/FUEL S & D - - USCG/SAE J1527 TYPE B2 (in red letters)
Part Number Nominal ID Nominal OD Max Rec. Working Pressure Vacuum HG Max Rec. Working Pressure Standard Length Weight
(in.) (mm) (in.) (mm) PSI (in.) (in.) (ft.) (lbs./ft.)
T600AA062X25 5/8" 16mm 1.02" 26mm 75 PSI 30" 2" 25ft 0.36 lbs
T600AA062X50 5/8" 16mm 1.02" 26mm 75 PSI 30" 2" 50ft 0.36 lbs
T600AA075X25 3/4" 19mm 1.18" 30mm 75 PSI 30" 2-1/4" 25ft 0.44 lbs
T600AA075X50 3/4" 19mm 1.18" 30mm 75 PSI 30" 2-1/4" 50ft 0.44 lbs
T600AA087X25 7/8" 22mm 1.26" 32mm 75 PSI 30" 2-3/4" 25ft 0.50 lbs
T600AA087X50 7/8" 22mm 1.26" 32mm 75 PSI 30" 2-3/4" 50ft 0.50 lbs
T600AA100X25 1" 25mm 1.38" 35mm 75 PSI 30" 3" 25ft 0.56 lbs
T600AA100X50 1" 25mm 1.38" 35mm 75 PSI 30" 3" 50ft 0.56 lbs
T600AA112X25 1-1/8" 28mm 1.50" 38mm 75 PSI 30" 3-1/4" 25ft 0.60 lbs
T600AA112X50 1-1/8" 28mm 1.50" 38mm 75 PSI 30" 3-1/4" 50ft 0.60 lbs
T600AA125X25 1-1/4" 32mm 1.65" 42mm 75 PSI 30" 3-3/4" 25ft 0.65 lbs
T600AA125X50 1-1/4" 32mm 1.65" 42mm 75 PSI 30" 3-3/4" 50ft 0.65 lbs
T600AA137X25 1-3/8" 35mm 1.77" 45mm 75 PSI 30" 4-1/4" 25ft 0.70 lbs
T600AA137X50 1-3/8" 35mm 1.77" 45mm 75 PSI 30" 4-1/4" 50ft 0.70 lbs
T600AA150X25 1-1/2" 38mm 1.89" 48mm 75 PSI 30" 4-1/2" 25ft 0.76 lbs
T600AA150X50 1-1/2" 38mm 1.89" 48mm 75 PSI 30" 4-1/2" 50ft 0.76 lbs
T600AA162X25 1-5/8" 42mm 2.17" 52mm 75 PSI 30" 5" 25ft 0.81 lbs
T600AA162X50 1-5/8" 42mm 2.17" 52mm 75 PSI 30" 5" 50ft 0.81 lbs
T600AA175X25 1-3/4" 45mm 2.16" 55mm 75 PSI 30" 5-1/4" 25ft 0.87 lbs
T600AA175X50 1-3/4" 45mm 2.16" 55mm 75 PSI 30" 5-1/4" 50ft 0.87 lbs
T600AA189X25 1-7/8" 48mm 2.28" 58mm 75 PSI 30" 5-3/4" 25ft 0.91 lbs
T600AA189X50 1-7/8" 48mm 2.28" 58mm 75 PSI 30" 5-3/4" 50ft 0.91 lbs
T600AA200X25 2" 51mm 2.40" 61mm 75 PSI 30" 6" 25ft 0.99 lbs
T600AA200X50 2" 51mm 2.40" 61mm 75 PSI 30" 6" 50ft 0.99 lbs
T600AA225X25 2-1/4" 51mm 2.40" 61mm 75 PSI 30" 6" 25ft 0.99 lbs
T600AA225X50 2-1/4" 51mm 2.40" 61mm 75 PSI 30" 6" 50ft 0.99 lbs
T600AA238X25 2-3/8" 60mm 2.76" 70mm 75 PSI 27" 7" 25ft 1.25 lbs
T600AA238X50 2-3/8" 60mm 2.76" 70mm 75 PSI 27" 7" 50ft 1.25 lbs
T600AA250X25 2-1/2" 63mm 2.87" 73mm 75 PSI 27" 7-1/2" 25ft 1.31 lbs
T600AA250X50 2-1/2" 63mm 2.87" 73mm 75 PSI 27" 7-1/2" 50ft 1.31 lbs
T600AA275X25 2-3/4" 70mm 3.11" 80mm 75 PSI 27" 8-1/4" 25ft 1.41 lbs
T600AA275X50 2-3/4" 70mm 3.11" 80mm 75 PSI 27" 8-1/4" 50ft 1.41 lbs
T600AA300X25 3" 76mm 3.39" 86mm 75 PSI 27" 9" 25ft 1.53 lbs
T600AA300X50 3" 76mm 3.39" 86mm 75 PSI 27" 9" 50ft 1.53 lbs
T600AA350X25 3-1/2" 90mm 3.94" 100mm 75 PSI 27" 10-1/2" 25ft 1.91 lbs
T600AA350X50 3-1/2" 90mm 3.94" 100mm 75 PSI 27" 10-1/2" 50ft 1.91 lbs
T600AA400X25 4" 102mm 4.41" 112mm 75 PSI 27" 12" 25ft 2.12 lbs
T600AA400X50 4" 102mm 4.41" 112mm 75 PSI 27" 12" 50ft 2.12 lbs
T600AA450X25 4-1/2" 115mm 5.00" 127mm 75 PSI 27" 13-1/2" 25ft 2.72 lbs
T600AA450X50 4-1/2" 115mm 5.00" 127mm 75 PSI 27" 13-1/2" 50ft 2.72 lbs
T600AA500X25 5" 127mm 5.55" 141mm 75 PSI 24" 15" 25ft 3.04 lbs
T600AA500X50 5" 127mm 5.55" 141mm 75 PSI 24" 15" 50ft 3.04 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
