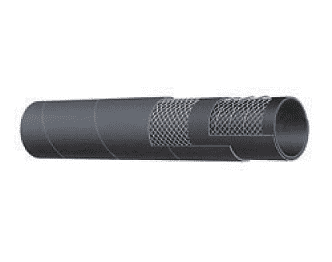

T605AA075X100 Alfagomma by Kuriyama | Black Petroleum S & D Hose | Black | 3/4" ID | 1.14" OD | 150 PSI | 100ft Length

T605AA075X100 Alfagomma by Kuriyama | Black Petroleum S & D Hose | Black | 3/4" ID | 1.14" OD | 150 PSI | 100ft Length

Save $201.32 Save $201.32
$704.63
$704.63 - $704.63
$704.63
$503.31
$503.31 - $503.31
$503.31

Kuriyama Alfagomma® T605AA Series 150 PSI Black Petroleum S & D Hose - Black

Package Quantity: 100 FT

Specifications for Variant SKU: T605AA075X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T605AA Series
Hose Color(s): Black
Internal Diameter: 0.75in
Outer Diameter: 1.14in
Tubing Construction: Conductive Nitrile
Cover Construction: Nitrile
Special Properties: Conductive Tube

SPECIFICATIONS

Application: For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content. SAE Rating: N/A
Other Ratings: N/A Tube: Black conductive NBR.
Reinforcement: High tensile textile cords and highly flexible steel helix wires. Cover: Black CR - abrasion, ozone and hydrocarbon resistant.
Temperature Range: -22 deg. F (-30 deg. C) to 176 deg. F (+80 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Note: T605 is not recommended for use on a reel
  • Branding: ALFAGOMMA - ITALY T605 - 10 BAR (150 PSI) PETROLEUM - S & D (in red letters)
  • Coupling Suggestions: Quick-Acting, combination nipples attached with bands or internally expanded brass couplings with gasket seal attached with ferrules.
Part Number Nominal ID Nominal OD Max Rec. Working Pressure Vacuum HG Min. Bending Radius Standard Length Weight
(in.) (mm) (in.) (mm) PSI (in.) (in. at 68 deg. F) (ft.) (lbs./ft.)
T605AA075X100 3/4" 19mm 1.14" 29mm 150 PSI 30" 3" 100ft 0.41 lbs
T605AA100X100 1" 25mm 1.38" 35mm 150 PSI 30" 4" 100ft 0.52 lbs
T605AA125X100 1-1/4" 32mm 1.65" 42mm 150 PSI 30" 5" 100ft 0.61 lbs
T605AA150X100 1-1/2" 38mm 1.89" 48mm 150 PSI 30" 6" 100ft 0.71 lbs
T605AA200X100 2" 51mm 2.40" 61mm 150 PSI 30" 8" 100ft 0.91 lbs
T605AA250X100 2-1/2" 63mm 2.95" 75mm 150 PSI 27" 10" 100ft 1.42 lbs
T605AA300X100 3" 76mm 3.46" 88mm 150 PSI 27" 12" 100ft 1.70 lbs
T605AA400X100 4" 102mm 4.57" 116mm 150 PSI 27" 16" 100ft 2.36 lbs
T605AA600X100 6" 152mm 6.61" 168mm 150 PSI 24" 24" 100ft 4.95 lbs
T605AA800X20 8" 203mm 8.70" 221mm 150 PSI 21" 32" 100ft 7.87 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
