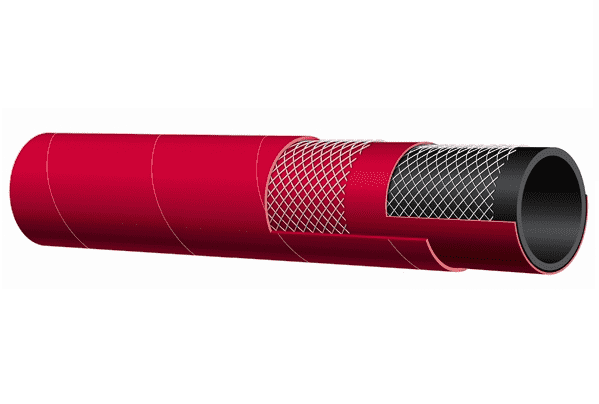

T605AH150X100 Kuriyama Alfagomma Red Petroleum S & D Hose - 1-1/2" ID - 1.89" OD - 150 PSI - 100ft

T605AH150X100 Alfagomma by Kuriyama | Red Petroleum S & D Hose | 1-1/2" ID | 1.89" OD | 150 PSI | 100ft Length

Save $339.04 Save $339.04
$1,186.63
$1,186.63 - $1,186.63
$1,186.63
$847.59
$847.59 - $847.59
$847.59

Kuriyama Alfagomma® T605AH Series 150 PSI Red Petroleum Suction & Discharge Hose - Red

Package Quantity: 100 FT

Specifications for Variant SKU: T605AH150X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T605AH Series
Hose Color(s): Red
Internal Diameter: 1.50in
Outer Diameter: 1.89in
Tubing Construction: Conductive Nitrile
Cover Construction: Nitrile
Special Properties: Conductive Tube

SPECIFICATIONS

Application: For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content. SAE Rating: N/A
Other Ratings: N/A Tube: Black conductive NBR.
Reinforcement: High tensile textile cords and highly flexible steel helix wires. Cover: Red CR - abrasion, ozone and hydrocarbon resistant.
Temperature Range: -22 deg. F (-30 deg. C) to 176 deg. F (+80 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • T605 is not recommended for use on a reel
  • Branding: ALFAGOMMA - ITALY T605 - 10 BAR (150 PSI)PETROLEUM - S & D (in yellow letters)
  • Coupling Suggestions: Quick-Acting, combination nipples attached with bands or internally expanded brass couplings with gasket seal attached with ferrules.
Part Number Nominal ID Nominal OD Max Rec. Working Pressure Vacuum HG Min. Bending Radius Standard Length Weight
(in.) (mm) (in.) (mm) PSI (in.) (in.) (ft.) (lbs./ft.)
T605AH150X100 1-1/2" 38mm 1.89" 48mm 150 PSI 30" 6" 100ft 0.73 lbs
T605AH200X100 2" 51mm 2.40" 61mm 150 PSI 30" 8" 100ft 0.94 lbs
T605AH300X100 3" 76mm 3.46" 88mm 150 PSI 27" 12" 100ft 1.74 lbs
T605AH400X100 4" 102mm 4.57" 116mm 150 PSI 27" 16" 100ft 2.41 lbs
