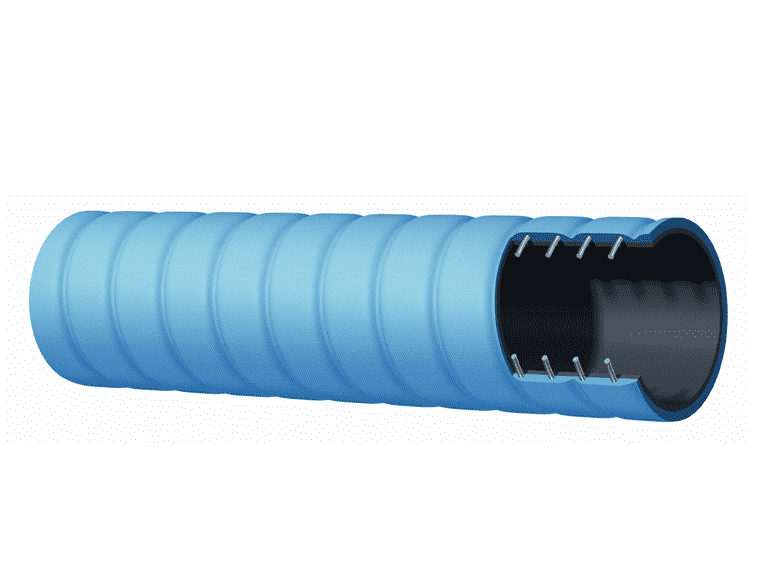

T606AE300X100 Alfagomma by Kuriyama | Corrugated Petroleum S & D Arctic Hose | Blue | 3" ID | 150 PSI | 100ft Length

T606AE300X100 Alfagomma by Kuriyama | Corrugated Petroleum S & D Arctic Hose | Blue | 3" ID | 150 PSI | 100ft Length

Save $814.42 Save $814.42
$2,850.46
$2,850.46 - $2,850.46
$2,850.46
$2,036.04
$2,036.04 - $2,036.04
$2,036.04

Kuriyama Alfagomma® T606AE Series 150 PSI Corrugated Petroleum Suction & Discharge - Arctic Hose - Red

Package Quantity: 100 FT

Specifications for Variant SKU: T606AE300X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T606AE Series
Hose Color(s): Blue
Internal Diameter: 3in
Outer Diameter: 3.54in
Tubing Construction: Conductive Nitrile
Special Properties: Conductive Tube

SPECIFICATIONS

Application: For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content. Where extreme flexibility is needed in low temperature. SAE Rating: N/A
Other Ratings: N/A Tube: Black conductive NBR.
Reinforcement: High tensile textile cords and highly flexible steel helix wires. Cover: Blue corrugated - abrasion, ozone and hydrocarbon resistant.
Temperature Range: -65 deg. F (-54 deg. C) to 180 deg. F (+82 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Branding: ALFAGOMMA - ITALY T606 - 10 BAR (150 PSI)PETROLEUM - S & D Arctic (in blue letters on yellow layline)
  • Coupling Suggestions: Quick-Acting, combination nipples attached with bands or internally expanded brass couplings with gasket seal attached with ferrules.
Part Number Nominal ID Max Rec. Working Pressure Vacuum HG Min. Bending Radius Standard Length Weight
(in.) (mm) PSI (in.) (in.) (ft.) (lbs./ft.)
T606AE200X100 2" 51mm 150 PSI 30" 3" 100ft 1.06 lbs
T606AE300X100 3" 76mm 150 PSI 30" 4-1/2" 100ft 2.84 lbs
T606AE400X100 4" 102mm 150 PSI 30" 6" 100ft 2.67 lbs
