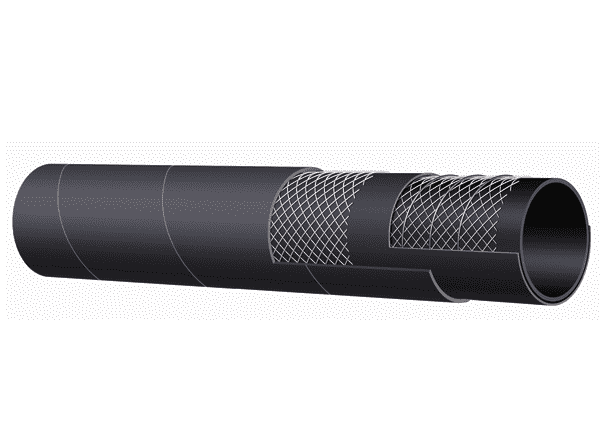

T620AA600X100 Alfagomma by Kuriyama | Black Fuel & Oil S & D Hose | 6" ID | 6.69" OD | 300 PSI | 100ft Length

T620AA600X100 Alfagomma by Kuriyama | Black Fuel & Oil S & D Hose | 6" ID | 6.69" OD | 300 PSI | 100ft Length

Save $2,269.28 Save $2,269.28
$7,942.49
$7,942.49 - $7,942.49
$7,942.49
$5,673.21
$5,673.21 - $5,673.21
$5,673.21

Kuriyama Alfagomma® T620AA Series 300 PSI Black Fuel & Oil Suction & Discharge Hose - Black

Package Quantity: 100 FT

Specifications for Variant SKU: T620AA600X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T620AA Series
Hose Color(s): Black
Internal Diameter: 6in
Outer Diameter: 6.69in
Tubing Construction: Conductive Nitrile
Cover Construction: Nitrile
Special Properties: Conductive Tube

SPECIFICATIONS

Application: Fuel and oil suction and discharge for up to 50% aromatic content. Designed for heavy duty applications. SAE Rating: N/A
Other Ratings: N/A Tube: Black conductive NBR.
Reinforcement: High tensile textile cords, steel helix wires and static wire. Cover: Black conductive CR - abrasion, ozone and hydrocarbon resistant.
Temperature Range: -22 deg. F (-30 deg. C) to 176 deg. F (+80 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Branding: ALFAGOMMA - ITALY T620 - 20 BAR (300 PSI) PETROLEUM - S & D Ω (in red letters)
  • Coupling Suggestions: Quick-Acting, combination nipples attached with bands or internally expanded brass couplings with gasket seal attached with ferrules.
Part Number Nominal ID Nominal ID Max Rec. Working Pressure Vacuum HG Max Rec. Working Pressure Standard Length Weight
(in.) (mm) (in.) (mm) PSI (in.) (in.) (ft.) (lbs./ft.)
T620AA200X100 2" 51mm 2.48" 63mm 300 PSI 30" 8" 100ft 1.10 lbs
T620AA300X100 3" 76mm 3.54" 90mm 300 PSI 27" 12" 100ft 1.77 lbs
T620AA400X100 4" 102mm 4.57" 116mm 300 PSI 27" 16" 100ft 2.43 lbs
T620AA600X100 6" 152mm 6.69" 170mm 300 PSI 24" 24" 100ft 5.60 lbs
T620AA600X20 6" 152mm 6.69" 170mm 300 PSI 24" 24" 20ft 5.60 lbs
