T650AH300X100 Alfagomma by Kuriyama | Oil Discharge Hose | Red | 3" ID | 3.46" OD | 150 PSI | 100ft Length

T650AH300X100 Alfagomma by Kuriyama | Oil Discharge Hose | Red | 3" ID | 3.46" OD | 150 PSI | 100ft Length

Save $537.62 Save $537.62
$1,881.67
$1,881.67 - $1,881.67
$1,881.67
$1,344.05
$1,344.05 - $1,344.05
$1,344.05

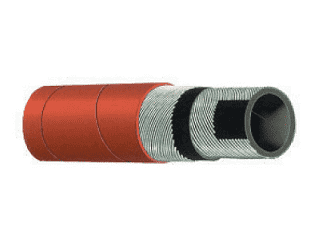

Kuriyama Alfagomma® T650AH Series 150 PSI Oil Discharge Hose - Red

Package Quantity: 100 FT

Specifications for Variant SKU: T650AH300X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T650AH Series
Hose Color(s): Red
Internal Diameter: 3in
Outer Diameter: 3.46in
Tubing Construction: Conductive Nitrile
Cover Construction: Nitrile
Special Properties: Conductive Tube, Ground Wire in Hose

SPECIFICATIONS

Application: Oil discharge hose designed for use on trucks, docks or barges where a soft wall hose is required. SAE Rating: N/A
Other Ratings: N/A Tube: Black conductive NBR.
Reinforcement: Spiralled high tensile textile cords with embedded static wire. Cover: Red CR - abrasion, ozone and hydrocarbon resistant.
Temperature Range: -22 deg. F (-30 deg. C) to 176 deg. F (+80 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Branding: ALFAGOMMA - ITALY T650 - 10 BAR (150 PSI) PETROLEUM DELIVERY (in yellow letters)
  • Coupling Suggestions: Quick-Acting or combination nipples attached with bands.
Part Number Nominal ID Nominal ID Max Rec. Working Pressure Standard Length Weight
(in.) (mm) (in.) (mm) PSI (ft.) (lbs./ft.)
T650AH150X100 1-1/2" 38mm 1.89" 48mm 150 PSI 100ft 0.62 lbs
T650AH200X100 2" 51mm 2.40" 61mm 150 PSI 100ft 0.82 lbs
T650AH300X100 3" 76mm 3.46" 88mm 150 PSI 100ft 1.42 lbs
T650AH400X100 4" 102mm 4.49" 114mm 150 PSI 100ft 1.92 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
