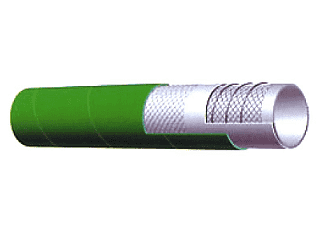

T720LG200X100 Alfagomma by Kuriyama | Bulk Food S & D Hose | FDA | Green | 2" ID | 2.64" OD | 150 PSI | 100ft Length

T720LG200X100 Alfagomma by Kuriyama | Bulk Food S & D Hose | FDA | Green | 2" ID | 2.64" OD | 150 PSI | 100ft Length

Save $587.56 Save $587.56
$2,056.45
$2,056.45 - $2,056.45
$2,056.45
$1,468.89
$1,468.89 - $1,468.89
$1,468.89

Kuriyama Alfagomma® T720LG Series Bulk Food Suction & Discharge Hose - FDA - Green

Package Quantity: 100 FT

Specifications for Variant SKU: T720LG200X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T720LG Series
Hose Color(s): Green
Internal Diameter: 2in
Outer Diameter: 2.64in
Tubing Construction: Natural Rubber
Cover Construction: SBR/EPDM Blend
Applicable Specs & Approvals: Applicable FDA Requirements
Special Properties: Ground Wire in Hose

SPECIFICATIONS

Application: Suction and discharge of wet or dry abrasive materials. Designed for grains, flour and pellet transfer. SAE Rating: N/A
Other Ratings: N/A Tube: 3/16" white NR - abrasion resistant.
Reinforcement: Spiralled high tensile textile cords, with 4 highly flexible steel helix wires and static wire. Cover: Green SBR/EPDM blend - abrasion and ozone resistant.
Temperature Range: -22 deg. F (-30 deg. C) to 176 deg. F (+80 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications: N/A
Literature: Alfagomma Rubber Hose Food Compatibility Guide (PDF)
Other Features:
  • Branding: ALFAGOMMA - ITALY T720 - BULK FOOD & MATERIAL - S & D (in white letters)
  • COUPLING SUGGESTIONS: Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Part Number Nominal ID Nominal ID Max Rec. Working Pressure Vacuum HG Min. Bend Radius at 68 deg. F Standard Length Weight
(in.) (mm) (in.) (mm) PSI (in.) (in.) (ft.) (lbs./ft.)
T720LG200X100 2" 51mm 2.64" 67mm 150 PSI 30" 6" 100ft 1.23 lbs
T720LG300X100 3" 76mm 3.62" 92mm 150 PSI 27" 9" 100ft 1.91 lbs
T720LG400X100 4" 102mm 4.65" 118mm 150 PSI 27" 12" 100ft 2.63 lbs
T720LG400X50 4" 102mm 4.65" 118mm 150 PSI 27" 12" 50ft 2.63 lbs
T720LG500X50 5" 127mm 5.71" 145mm 75 PSI 24" 20" 50ft 3.81 lbs
T720LG600X50 6" 152mm 6.69" 170mm 75 PSI 24" 24" 50ft 4.72 lbs
Please note: Proper grounding of static wire will prolong tube life.
