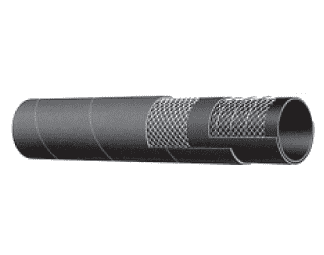

T902AA400X100 Alfagomma by Kuriyama | High Quality Hot Air Blower Hose | Black | 4" ID | 4.65" OD | 150 PSI | 100ft Length

T902AA400X100 Alfagomma by Kuriyama | High Quality Hot Air Blower Hose | Black | 4" ID | 4.65" OD | 150 PSI | 100ft Length

Save $48.64 Save $48.64
$1,768.89
$1,768.89 - $1,768.89
$1,768.89
$1,720.25
$1,720.25 - $1,720.25
$1,720.25

Kuriyama Alfagomma® T902AA Series 150 PSI High Quality Hot Air Blower Hose - Black

Package Quantity: 100 FT

Specifications for Variant SKU: T902AA400X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T902AA Series
Hose Color(s): Black
Internal Diameter: 4in
Outer Diameter: 4.65in
Tubing Construction: EPDM
Cover Construction: EPDM

SPECIFICATIONS

Application: Hot air transfer between the air compressor and dry bulk tank on bulk material carriers. SAE Rating: N/A
Other Ratings: N/A Tube: Black EPDM - heat-resistant.
Reinforcement: Spiralled high tensile textile cords and 4 highly flexible steel helix wires. Cover: Black EPDM - heat, abrasion and ozone resistant.
Temperature Range: -40 deg. F (-40 deg. C) to 350 deg. F (+180 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Branding: ALFAGOMMA - ITALY T902 10 BAR (150 PSI) - HOT AIR SERVICE (in white letters)
  • Coupling Suggestions: Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Part Number Nominal ID Nominal OD Max Rec. Working Pressure Vacuum Min. Bend Radius at 68 deg. F Standard Length Weight
(in.) (mm) (in.) (mm) PSI (in. Hg) (in.) (ft.) (lbs./ft.)
T902AA200X100 2" 51mm 2.48" 63mm 150 PSI 30" 6" 100ft 1.01 lbs
T902AA300X100 3" 76mm 3.54" 90mm 150 PSI 27" 9" 100ft 1.60 lbs
T902AA400X100 4" 102mm 4.65" 116mm 150 PSI 27" 12" 100ft 2.23 lbs
