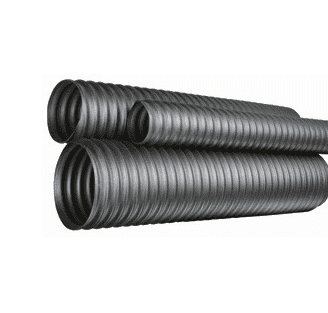

TMOD500X25 by Kuriyama | Thermo-Duct Ducting Hose | Black | ID: 5" | 10PSI | Thermoplastic Rubber | 25ft Length

TMOD500X25 by Kuriyama | Thermo-Duct Ducting Hose | Black | ID: 5" | 10PSI | Thermoplastic Rubber | 25ft Length

Save $68.70 Save $68.70
$240.45
$240.45 - $240.45
$240.45
$171.75
$171.75 - $171.75
$171.75

Kuriyama Ducting Hose - Thermo-Duct Thermoplastic Rubber Ducting Hose Series TMOD - Black

Flexible and Compressible - Ideal for demanding and difficult applications.

Package Quantity: 25 FT

Specifications for Variant SKU: TMOD500X25 Kuriyama | 25 |
Brand: Thermo-Duct
Series: TMOD Series
Hose Color(s): Black
Internal Diameter: 5in
Tubing Construction: Thermoplastic Rubber
Applicable Specs & Approvals: RoHS Compliant

SPECIFICATIONS

Application: Air transfer and ducting, Venting systems Fume control, Exhausting gases, Dust collection Light abrasion transfer SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -60 deg. F (-51 deg. C) to +275 deg. F (+135 deg. C); up to 300 deg. F (+149 deg. C) for intermittent service. Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Black thermoplastic rubber (TPR) elastomer.
  • Helical wire reinforced.
  • Superior chemical and moisture resistance.
  • Excellent ozone & weathering resistance.
  • Standard lengths: 25-ft.
  • Compressibility: 65%
  • Shipped individually boxed.
  • Superior design provides better internal and external abrasion resistance than similar hoses. Thermo-Duct™ has a full 30 mil. wall thickness encompassing the helix wire. Other competitor's hoses stretch the elastomer over the wire - resulting in susceptible thin spots.
Part Number Nominal ID Min. Bend. Radius Max W.P. Vacuum Rating Weight Length
(in.) (in.) PSI (in./Hg) (lbs/ft) (ft.)
TMOD200X25 2" 1" 17 PSI 24 in. Hg. 0.22lbs 25ft
TMOD250X25 2-1/2" 1-1/4" 15 PSI 24 in. Hg. 0.40lbs 25ft
TMOD300X25 3" 1-1/2" 14 PSI 24 in. Hg. 0.55lbs 25ft
TMOD400X25 4" 2" 11 PSI 24 in. Hg. 0.75lbs 25ft
TMOD500X25 5" 2-1/2" 10 PSI 15 in. Hg. 0.85lbs 25ft
TMOD600X25 6" 3" 9 PSI 9 in. Hg. 0.94lbs 25ft
TMOD800X25 8" 4" 8 PSI 8 in. Hg. 1.62lbs 25ft
TMOD1000X25 10" 5" 7 PSI 6 in. Hg. 1.86lbs 25ft
TMOD1200X25 12" 6" 6 PSI 4 in. Hg. 2.05lbs 25ft
