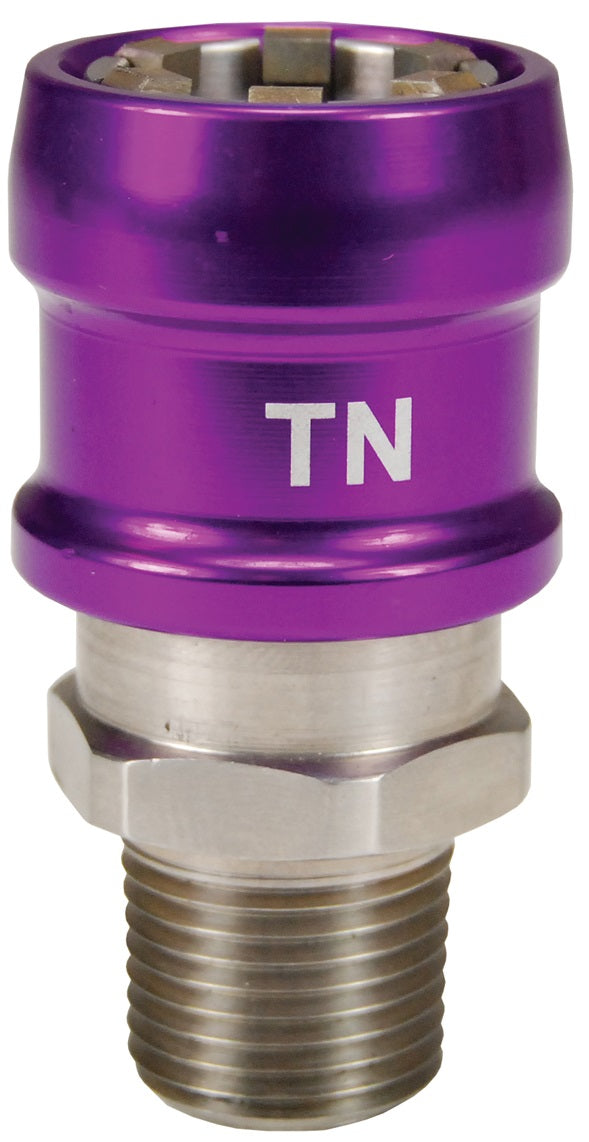

TN by Dixon Valve | FloMAX Standard-Series | Transmission Fluid Nozzle | 1/2" Male NPT | Violet/Purple | Anodized Aluminum

Save $44.17

$397.50

$397.50 - $397.50

$397.50

$353.33

$353.33 - $353.33

$353.33

Dixon Valve
FloMAX Standard-Series | Transmission Fluid Nozzle

Fully compatible and interchangeable with industry standards.

Quantity

Specifications for Variant SKU: TN Dixon
Brand:	FloMAX
Series:	TN Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male NPT
Material(s):	Anodized Aluminum, Stainless Steel

Features:
Bright Violet. Easily recognizable labeling. Ergonomically engineered pullback and caps. 6 steel dog latching mechanism.
Construction:
All-metal construction. Stainless steel wear components. Anodized aircraft grade aluminum non-wear components. Clear anodized aircraft grade aluminum wear surfaces.

Transmission Fluid Nozzles
Part Number	Description	Thread Size	Cross Over Part Numbers
Part Number	Description	Thread Size	Caterpillar®	Wiggins	FastFill
TN	Transmission Fluid Nozzle	1/2" Male NPT	126-7538	C-1807	N400
TN-P	Transmission Fluid Nozzle with Plug	1/2" Male NPT	-	-	N400P
TN-PLUG	Transmission Fluid Nozzle Plug	-	-	P-1844	P400

Transmission Fluid Receivers
Part Number	Description	Thread Size	Cross Over Part Numbers
Part Number	Description	Thread Size	Caterpillar®	Wiggins	FastFill
TR	Transmission Fluid Receiver	3/8" Female NPT	108-5456	P-1804	R400
TR-C	Transmission Fluid Receiver with Cap	3/8" Female NPT	-	-	R400C
TR-CAP	Transmission Fluid Receiver Cap	-	SP3587	P-1880	C400

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
