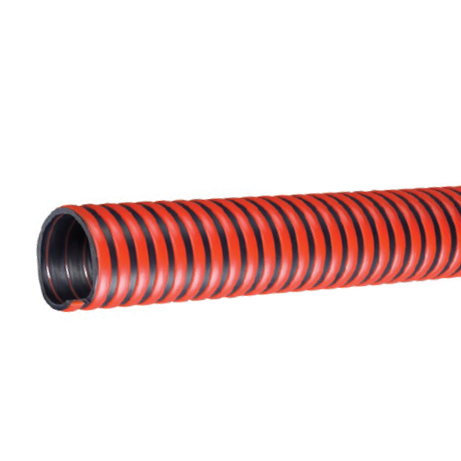

TRED400X100 Kuriyama Tigerflex TRED Series Tiger Red EPDM Suction Hose - 4" - 100ft

TRED400X100 Tigerflex by Kuriyama | TRED Series | Tiger Suction Hose | Red | 4" ID | EPDM | 100ft Length

Save $568.32 Save $568.32
$1,989.12
$1,989.12 - $1,989.12
$1,989.12
$1,420.80
$1,420.80 - $1,420.80
$1,420.80

Kuriyama Tigerflex TRED™ Series Tiger Red EPDM Suction Hose


Package Quantity: 100 FT

Specifications for Variant SKU: TRED400X100 Kuriyama | 100 |
Brand: Tigerflex
Series: TRED Series
Hose Color(s): Red
Internal Diameter: 4in
Outer Diameter: 4.70in
Tubing Construction: EPDM
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Agriculture liquid fertilizers, Irrigation lines, Liquid manure handling, Marine bilge discharge, Septic and wastewater handling, Used frack solution removal, Water suction - standard duty, Rental and construction dewatering, Pumps, Trash SAE Rating: N/A
Other Ratings: N/A Tube: EPDM
Reinforcement: Polyethylene Helix Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to 160 deg. F (+71 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Superior Rubber Compounds - Tigerflex™ uses only the best available EPDM compounds, which provide the ideal combination of light-weight, flexibility, durability and chemical resistance.
  • Superior Flexibility - Our tests show up to 22% more flexible than the competition, especially in sub-zero weather! Tiger™ Green comes off the trucks more flexible and easier to handle than other similar Hose.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces and around corners. Easy-to-handle.
  • Convoluted Outer Cover - Provides increased hose flexibility
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Min. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
TRED200X100 2" 50.8mm 2.51" 63.8mm 50 PSI 35 PSI Full 28 in .Hg 5" 100ft 0.67 lbs
TRED300X100 3" 76.2mm 3.60" 91.5mm 45 PSI 30 PSI Full 26 in .Hg 7" 100ft 1.14 lbs
TRED400X100 4" 101.6mm 4.70" 119.5mm 40 PSI 25 PSI Full 26 in .Hg 11.5" 100ft 1.84 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
