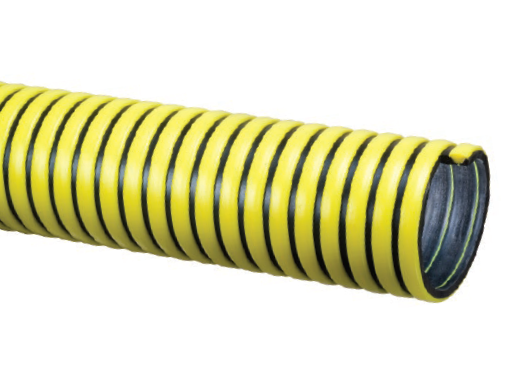

TY100X100 Kuriyama Tigerflex TY Series Tiger Yellow EPDM Suction Hose - 1" - 100ft

TY100X100 Tigerflex by Kuriyama | TY Series | Tiger Suction Hose | Yellow | 1" ID | EPDM | 100ft Length

Save $91.44

$320.04

$320.04 - $320.04

$320.04

$228.60

$228.60 - $228.60

$228.60

Kuriyama Tigerflex TY™ Series Tiger Yellow EPDM Suction Hose

Package Quantity: 100 FT

Specifications for Variant SKU: TY100X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	TY Series
Hose Color(s):	Yellow
Internal Diameter:	1in
Outer Diameter:	1.40in
Tubing Construction:	EPDM
Applicable Specs & Approvals:	RoHS Compliant
Special Properties:	Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Agriculture liquid fertilizers, Irrigation lines, Liquid manure handling, Marine bilge discharge, Septic and wastewater handling, Used frack solution removal, Water suction - standard duty, Pumps, rental and construction dewatering, Trash	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	EPDM
Reinforcement:	Polyethylene Helix	Cover:	N/A
Temperature Range:	-40 deg. F (-40 deg. C) to 160 deg. F (+71 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	RoHS(10)
Superior Rubber Compounds - Tigerflex™ uses only the best available EPDM compounds, which provide the ideal combination of light-weight, flexibility, durability and chemical resistance. Superior Flexibility - Our tests show up to 22% more flexible than the competition, especially in sub-zero weather! Tiger™ Green comes off the trucks more flexible and easier to handle than other similar hoses. Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces and around corners. Easy-to-handle. Convoluted Outer Cover - Provides increased hose flexibility "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Min. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
TY100X100	1"	25.4mm	1.40"	35.5mm	65 PSI	45 PSI	Full	28 in.Hg	2"	100ft	0.28 lbs
TY125X100	1-1/4"	31.8mm	1.63"	41.4mm	60 PSI	40 PSI	Full	28 in.Hg	3"	100ft	0.33 lbs
TY150X100	1-1/2"	38.1mm	1.93"	49.0mm	50 PSI	35 PSI	Full	28 in .Hg	3"	100ft	0.44 lbs
TY200X100	2"	50.8mm	2.51"	63.8mm	50 PSI	35 PSI	Full	28 in .Hg	5"	100ft	0.67 lbs
TY300X100	3"	76.2mm	3.60"	91.5mm	45 PSI	30 PSI	Full	26 in .Hg	7"	100ft	1.14 lbs
TY400X100	4"	101.6mm	4.70"	119.5mm	40 PSI	25 PSI	Full	26 in .Hg	11.5"	100ft	1.84 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
