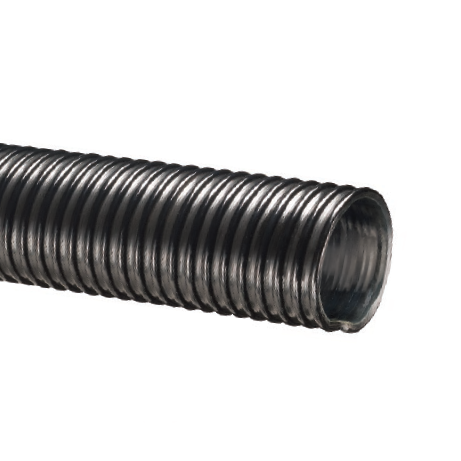

UBK300X50 Kuriyama Tigerflex UBK Series Heavy Duty Polyurethane Lined Material Handling Hose - 3" - 50ft

UBK300X50 Tigerflex by Kuriyama | UBK Series | Heavy Duty Lined Material Handling Hose | 3" ID | Polyurethane | 50ft Length

Save $201.72 Save $201.72
$706.02
$706.02 - $706.02
$706.02
$504.30
$504.30 - $504.30
$504.30

Kuriyama Tigerflex UBK™ Series Extra Heavy Duty Polyurethane Lined Material Handling Hose


Package Quantity: 50 FT

Specifications for Variant SKU: UBK300X50 Kuriyama | 50 |
Brand: Tigerflex
Series: UBK Series
Hose Color(s): Black
Internal Diameter: 3in
Outer Diameter: 3.64in
Tubing Construction: Polyurethane
Cover Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Conductive Hose Cover, Outer Helix Protection

SPECIFICATIONS

Application: Agricultural dry fertilizers, Air seeder lines, Fly ash collection, Industrial vacuum equipment, Material handling - heavy duty abrasive, Milling machine scrap recovery, Shot blast recovery, Rock, gravel, sand and crushed concrete vacuuming SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane
Reinforcement: Rigid PVC Helix Cover: PVC
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Thick Abrasion Resistant Polyurethane Liner - designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
  • Static Dissipative Cover - Specially formulated to help prevent the build-up of static electricity for added safety and to help keep material flowing smoothly.
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
  • Oil Resistant Polyurethane Liner - Resists most animal and petroleum based oils.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Min. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
UBK200X100 2" 50.8mm 2.40" 61.0mm 40 PSI 15 PSI Full 28 in. Hg 2" 100ft 0.59 lbs
UBK200X50 2" 50.8mm 2.40" 61.0mm 40 PSI 15 PSI Full 28 in. Hg 2" 50ft 0.59 lbs
UBK250X100 2-1/2" 63.5mm 3.07" 78.0mm 40 PSI 15 PSI Full 28 in. Hg 4" 100ft 0.79 lbs
UBK250X50 2-1/2" 63.5mm 3.07" 78.0mm 40 PSI 15 PSI Full 28 in. Hg 4" 50ft 0.79 lbs
UBK300X100 3" 76.2mm 3.64" 92.5mm 40 PSI 15 PSI Full 28 in. Hg 4" 100ft 0.83 lbs
UBK300X50 3" 76.2mm 3.64" 92.5mm 40 PSI 15 PSI Full 28 in. Hg 4" 50ft 0.83 lbs
UBK400X100 4" 101.6mm 4.76" 120.9mm 35 PSI 13 PSI Full 28 in. Hg 6" 100ft 1.37 lbs
UBK400X50 4" 101.6mm 4.76" 120.9mm 35 PSI 13 PSI Full 28 in. Hg 6" 50ft 1.37 lbs
UBK500X100 5" 127.0mm 5.69" 144.5mm 30 PSI 10 PSI 28 in. Hg 15 in. Hg 10" 100ft 2.28 lbs
UBK500X50 5" 127.0mm 5.69" 144.5mm 30 PSI 10 PSI 28 in. Hg 15 in. Hg 10" 50ft 2.28 lbs
UBK600X100 6" 152.4mm 6.81" 173.0mm 30 PSI 10 PSI 28 in. Hg 15 in. Hg 12" 100ft 3.10 lbs
UBK600X50 6" 152.4mm 6.81" 173.0mm 30 PSI 10 PSI 28 in. Hg 15 in. Hg 12" 50ft 3.10 lbs
UBK800X50 8" 203.2mm 9.02" 229.0mm 30 PSI 10 PSI 28 in. Hg 15 in. Hg 15" 50ft 4.51 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
