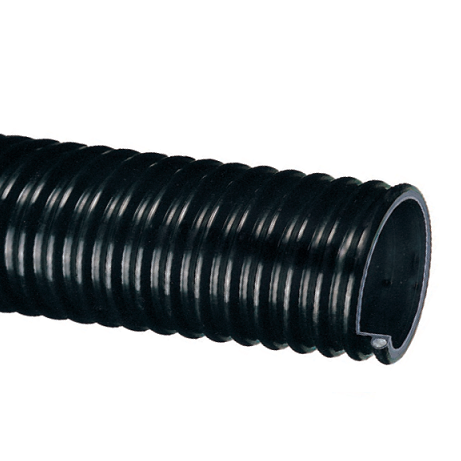

UF1-250X100 Kuriyama Tigerflex UF1 Series Ureflex Heavy Duty Polyurethane Lined Material Handling Hose - 2-1/2" - 100ft

UF1-250X100 Tigerflex by Kuriyama | UF1 Series | Ureflex Heavy Duty Lined Material Handling Hose | 2-1/2" ID | Polyurethane | 100ft Length

Save $360.48 Save $360.48
$1,261.68
$1,261.68 - $1,261.68
$1,261.68
$901.20
$901.20 - $901.20
$901.20

Kuriyama Tigerflex UF1™ Series Ureflex Extra Heavy Duty Polyurethane Lined Material Handling Hose


Package Quantity: 100 FT

Specifications for Variant SKU: UF1-250X100 Kuriyama | 100 |
Brand: Tigerflex
Series: UF1 Series
Hose Color(s): Black
Internal Diameter: 2.50in
Outer Diameter: 3.07in
Tubing Construction: Polyurethane
Cover Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Conductive Hose Cover, Outer Helix Protection

SPECIFICATIONS

Application: Agricultural dry fertilizers, Air seeder lines, Fly ash collection, Industrial vacuum equipment, Material chutes, Material handling - heavy duty abrasive, Milling machine scrap recovery, Shot blast recovery, Rock, gravel, sand and crushed concrete vacuuming SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane
Reinforcement: Rigid PVC Helix Cover: PVC
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Thick Abrasion Resistant Polyurethane Liner - designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
  • Static Dissipative Cover - Specially formulated to help prevent the build-up of static electricity for added safety and to help keep material flowing smoothly.
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Convoluted Outer Cover - Provides increased hose flexibility.
  • Oil Resistant Polyurethane Liner - Resists most animal and petroleum based oils.
3
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Min. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
UF1-125X100 1-1/4" 31.8mm 1.53" 39.0mm 50 PSI 25 PSI Full 28 in. Hg 2" 100ft 0.22 lbs
UF1-150X100 1-1/2" 38.1mm 1.85" 47.0mm 50 PSI 25 PSI Full 28 in. Hg 2" 100ft 0.42 lbs
UF1-150X50 1-1/2" 38.1mm 1.85" 47.0mm 50 PSI 25 PSI Full 28 in. Hg 2" 50ft 0.42 lbs
UF1-200X100 2" 50.8mm 2.40" 61.0mm 40 PSI 20 PSI Full 28 in. Hg 3" 100ft 0.59 lbs
UF1-200X50 2" 50.8mm 2.40" 61.0mm 40 PSI 20 PSI Full 28 in. Hg 3" 50ft 0.59 lbs
UF1-250X100 2-1/2" 63.5mm 3.07" 78.0mm 40 PSI 20 PSI Full 28 in. Hg 3" 100ft 0.80 lbs
UF1-250X50 2-1/2" 63.5mm 3.07" 78.0mm 40 PSI 20 PSI Full 28 in. Hg 3" 50ft 0.80 lbs
UF1-300X100 3" 76.2mm 3.64" 92.5mm 40 PSI 20 PSI Full 28 in. Hg 4" 100ft 1.18 lbs
UF1-300X50 3" 76.2mm 3.64" 92.5mm 40 PSI 20 PSI Full 28 in. Hg 4" 50ft 1.18 lbs
UF1-350X100 3-1/2" 88.9mm 4.21" 107.0mm 35 PSI 18 PSI Full 28 in. Hg 5" 100ft 1.48 lbs
UF1-350X50 3-1/2" 88.9mm 4.21" 107.0mm 35 PSI 18 PSI Full 28 in. Hg 5" 50ft 1.48 lbs
UF1-400X100 4" 101.6mm 4.76" 120.9mm 35 PSI 18 PSI Full 28 in. Hg 6" 100ft 1.95 lbs
UF1-400X50 4" 101.6mm 4.76" 120.9mm 35 PSI 18 PSI Full 28 in. Hg 6" 50ft 1.95 lbs
UF1-500X100 5" 127.0mm 5.75" 146.0mm 35 PSI 18 PSI 28 in. Hg 25 in. Hg 10" 100ft 2.42 lbs
UF1-500X50 5" 127.0mm 5.75" 146.0mm 35 PSI 18 PSI 28 in. Hg 25 in. Hg 10" 50ft 2.42 lbs
UF1-600X100 6" 152.4mm 6.81" 173.0mm 30 PSI 15 PSI 28 in. Hg 25 in. Hg 12" 100ft 3.50 lbs
UF1-600X50 6" 152.4mm 6.81" 173.0mm 30 PSI 15 PSI 28 in. Hg 25 in. Hg 12" 50ft 3.50 lbs
UF1-800X50 8" 203.2mm 9.18" 233.2mm 30 PSI 15 PSI 28 in. Hg 25 in. Hg 18" 50ft 5.91 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
