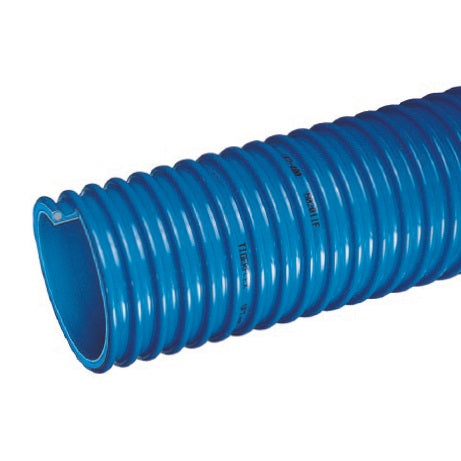

UF2-600X100 Kuriyama Tigerflex UF2 Series Ureflex Extra Heavy Duty Polyurethane Lined Material Handling Hose - 6" - 100ft

UF2-600X100 Tigerflex by Kuriyama | UF2 Series | Ureflex Extra Heavy Duty Lined Material Handling Hose | 6" ID | Polyurethane | 100ft Length

Save $1,764.48 Save $1,764.48
$6,175.68
$6,175.68 - $6,175.68
$6,175.68
$4,411.20
$4,411.20 - $4,411.20
$4,411.20

Kuriyama Tigerflex UF2™ Series Ureflex Extra Heavy Duty Polyurethane Lined Material Handling Hose


Package Quantity: 100 FT

Specifications for Variant SKU: UF2-600X100 Kuriyama | 100 |
Brand: Tigerflex
Series: UF2 Series
Hose Color(s): Blue
Internal Diameter: 6in
Outer Diameter: 6.87in
Tubing Construction: Polyurethane
Cover Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Conductive Hose Cover, Outer Helix Protection

SPECIFICATIONS

Application: Fly ash collection, Industrial vacuum equipment, Material chutes, Material handling - heavy duty abrasive, Milling machine scrap recovery, Shot blast recovery, Rock, gravel, sand and crushed concrete vacuuming, Shot blast recovery SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane
Reinforcement: Rigid PVC Helix Cover: PVC
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Extra Thick Abrasion Resistant Polyurethane Liner - designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
  • Static Dissipative Cover - Specially formulated to help prevent the build-up of static electricity for added safety and to help keep material flowing smoothly.
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Convoluted Outer Cover - Provides increased hose flexibility.
  • Oil Resistant Polyurethane Liner - Resists most animal and petroleum based oils.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Min. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
UF2-150X100 1-1/2" 38.1mm 1.88" 47.8mm 50 PSI 25 PSI Full 28 in. Hg 3" 100ft 0.46 lbs
UF2-200X100 2" 50.8mm 2.44" 62.0mm 40 PSI 20 PSI Full 28 in. Hg 4" 100ft 0.65 lbs
UF2-250X100 2-1/2" 63.5mm 3.12" 79.2mm 40 PSI 20 PSI Full 28 in. Hg 5" 100ft 0.89 lbs
UF2-300X100 3" 76.2mm 3.70" 94.1mm 40 PSI 20 PSI Full 28 in. Hg 6" 100ft 1.23 lbs
UF2-300X50 3" 76.2mm 3.70" 94.1mm 40 PSI 20 PSI Full 28 in. Hg 6" 50ft 1.23 lbs
UF2-400X100 4" 101.6mm 4.80" 122.0mm 35 PSI 18 PSI Full 28 in. Hg 10" 100ft 2.02 lbs
UF2-400X50 4" 101.6mm 4.80" 122.0mm 35 PSI 18 PSI Full 28 in. Hg 10" 50ft 2.02 lbs
UF2-500X100 5" 127.0mm 5.81" 147.6mm 35 PSI 18 PSI 28 in. Hg 25 in. Hg 15" 100ft 2.50 lbs
UF2-500X50 5" 127.0mm 5.81" 147.6mm 35 PSI 18 PSI 28 in. Hg 25 in. Hg 15" 50ft 2.50 lbs UF2-600X100 6" 152.4mm 6.87" 174.5mm 30 PSI 15 PSI 28 in. Hg 25 in. Hg 18" 100ft 3.84 lbs
UF2-600X50 6" 152.4mm 6.87" 174.5mm 30 PSI 15 PSI 28 in. Hg 25 in. Hg 18" 50ft 3.84 lbs
UF2-800X50 8" 203.2mm 9.18" 233.2mm 30 PSI 15 PSI 28 in. Hg 25 in. Hg 22" 50ft 6.52 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
