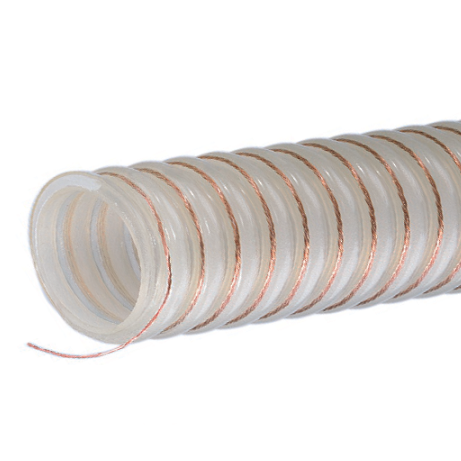

UVPE200X100 Kuriyama Tigerflex UVPE Series Heavy Duty Polyurethane Material Handling Hose With Grounding Wire - 2" - 100ft

UVPE200X100 Tigerflex by Kuriyama | UVPE Series | Heavy Duty Material Handling Hose With Grounding Wire | 2" ID | Polyurethane | 100ft Length

Save $177.92 Save $177.92
$1,792.59
$1,792.59 - $1,792.59
$1,792.59
$1,614.67
$1,614.67 - $1,614.67
$1,614.67

Kuriyama Tigerflex UVPE™ Series Heavy Duty Polyurethane Material Handling Hose With Grounding Wire


Package Quantity: 100 FT

Specifications for Variant SKU: UVPE200X100 Kuriyama | 100 |
Brand: Tigerflex
Series: UVPE Series
Hose Color(s): White/Off-White
Internal Diameter: 2in
Outer Diameter: 2.44in
Tubing Construction: Polyurethane
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Application: Material handling - heavy duty abrasive, Plastic processing equipment SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane
Reinforcement: Rigid Polypropylene Helix Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Thick Abrasion Resistant Polyurethane Tube - designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
  • Crush Resistant Construction - Hose rebounds to shape without structural damage when crushed; material keeps flowing.
  • Grounding Wire - Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly.
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Convoluted Outer Cover - Provides increased hose flexibility.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Oil Resistant Polyurethane Liner - Resists most animal and petroleum based oils.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
UVPE150X100 1-1/2" 38.1mm 1.87" 47.5mm 20 PSI 7 PSI 22 in. Hg 14 in. Hg 3" 100ft 0.39 lbs
UVPE200X100 2" 50.8mm 2.44" 62.0mm 15 PSI 6 PSI 21 in. Hg 12 in. Hg 4" 100ft 0.48 lbs
UVPE250X100 2-1/2" 63.5mm 2.99" 75.9mm 10 PSI 5 PSI 19 in. Hg 10 in. Hg 5" 100ft 0.55 lbs
UVPE300X100 3" 76.2mm 3.64" 92.5mm 10 PSI 5 PSI 18 in. Hg 10 in. Hg 6" 100ft 0.68 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent. CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fitting or by other means.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
