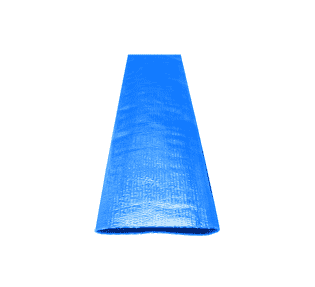

VFL075X300 by Kuriyama | Layflat Vinylflow EZ Lite General Purpose Water Discharge Hose | Blue | Size: 3/4" | .760" ID | 100 PSI | PVC | 300ft Length

VFL075X300 by Kuriyama | Layflat Vinylflow EZ Lite General Purpose Water Discharge Hose | Blue | Size: 3/4" | .760" ID | 100 PSI | PVC | 300ft Length

Save $15.89 Save $15.89
$168.89
$168.89 - $168.89
$168.89
$153.00
$153.00 - $153.00
$153.00

Kuriyama Layflat Hoses - Vinylflow® EZ-Lite Hose - Blue

General Purpose PVC Water Discharge Hose

Package Quantity: 300 FT

Specifications for Variant SKU: VFL075X300 Kuriyama | 300 |
Brand: EZ-Lite, Vinylflow
Series: VFL Series
Hose Color(s): Blue
Internal Diameter: 0.76in
Tubing Construction: PVC

SPECIFICATIONS

Application: Equipment rental, Agriculture, Construction, General open end water discharge SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Polyester yarn spiral wrap and longitudinal strength member Cover: PVC
Temperature Range: -5 deg. F (-20 deg. C) to 170 deg. F (+76 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Smooth tube - Provides low friction loss.
  • EZ - An easy to handle lightweight hose for general purpose applications.
  • Ultraviolet inhibitors - Reduces aging and weather checking.
  • Storage - All coils have PVC cores for easier dispensing. Hoses coil flat for easy storage.
Part Number Size Size Hose ID Hose ID Approximate Wall Thickness Working Pressure Coil Length Weight
(in.) (mm) (in.) (mm) (in.) (PSI) (ft.) (Lbs/Coil)
VFL075X300 3/4" 19.1mm 0.760" 19.3mm 0.054" 100 PSI 300ft 23.0 lbs
VFL100X300 1" 25.4mm 1.024" 26.0mm 0.051" 85 PSI 300 ft 30.0 lbs
VFL125X300 1-1/4" 31.8mm 1.299" 33.0mm 0.051" 85 PSI 300 ft 35.0 lbs
VFL150X300 1-1/2" 38.1mm 1.614" 41.0mm .045" 65 PSI 300 ft 42.0 lbs
VFL200X300 2" 50.8mm 2.087" 53.0mm .048" 65 PSI 300 ft 49.0 lbs
VFL200X50 2" 50.8mm 2.087" 53.0mm .048" 65 PSI 50 ft 8.0 lbs
VFL300X300 3" 76.2mm 3.071" 78.0mm .055" 60 PSI 300 ft 90.0 lbs
VFL300X50 3" 76.2mm 3.071" 78.0mm .055" 60 PSI 50 ft 15.0 lbs
VFL400X300 4" 101.6mm 4.094" 104.0mm .056" 60 PSI 300 ft 131.0 lbs
VFL600X300 6" 152.4mm 6.102" 155.0mm .061" 40 PSI 300 ft 209.0 lbs
VFL800X300 8" 203.2mm 8.169" 208.0mm .073" 40 PSI 300 ft 312.0 lbs
