VLT-SD600X60 Kuriyama Tigerflex VLT Series Heavy Duty Food Grade Static Dissipative Polyurethane Fabric Reinforced Material Handling Hose - 6" - 60ft
VLT-SD600X60 Tigerflex by Kuriyama | VLT Series | Heavy Duty Food Grade Static Dissipative Fabric Reinforced Material Handling Hose | 6" ID | Polyurethane | 60ft Length
VLT-SD600X60 Tigerflex by Kuriyama | VLT Series | Heavy Duty Food Grade Static Dissipative Fabric Reinforced Material Handling Hose | 6" ID | Polyurethane | 60ft Length
VLT-SD600X60 Tigerflex by Kuriyama | VLT Series | Heavy Duty Food Grade Static Dissipative Fabric Reinforced Material Handling Hose | 6" ID | Polyurethane | 60ft Length
VLT-SD600X60 Kuriyama Tigerflex VLT Series Heavy Duty Food Grade Static Dissipative Polyurethane Fabric Reinforced Material Handling Hose - 6" - 60ft

VLT-SD600X60 Tigerflex by Kuriyama | VLT Series | Heavy Duty Food Grade Static Dissipative Fabric Reinforced Material Handling Hose | 6" ID | Polyurethane | 60ft Length

Save $523.47 Save $523.47
$5,242.67
$5,242.67 - $5,242.67
$5,242.67
$4,719.20
$4,719.20 - $4,719.20
$4,719.20

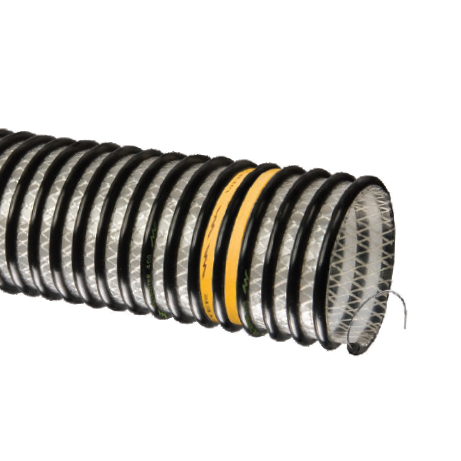

Kuriyama Tigerflex VLT-SD™ Series Heavy Duty Food Grade Static Dissipative Polyurethane Fabric Reinforced Material Handling Hose


Package Quantity: 60 FT

Specifications for Variant SKU: VLT-SD600X60 Kuriyama | 60 |
Brand: Tigerflex
Series: VLT-SD Series
Hose Color(s): Black & Clear/Semi-Clear & Orange
Internal Diameter: 6in
Outer Diameter: 6.93in
Tubing Construction: Static Dissipating Polyurethane
Applicable Specs & Approvals: Applicable FDA Requirements, RoHS Compliant
Special Properties: Conductive Tube, Ground Wire in Hose, Outer Helix Protection
Application: Food Grade Material Handling, Material Handling, Bulk Truck and Railcar Unloading, Suction and Discharge, Milling Machine Scrap Recovery, Plastic Processing Equipment,Pneumatic Conveying Equipment SAE Rating: N/A
Other Ratings: N/A Tube: Static Dissipative Polyurethane
Reinforcement: Polyester Fabric Reinforcement, Rigid Helix and Grounding Wire (patent pending) Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications BSE/TSE(02), FDA(05), FDA(06), RoHS(10)

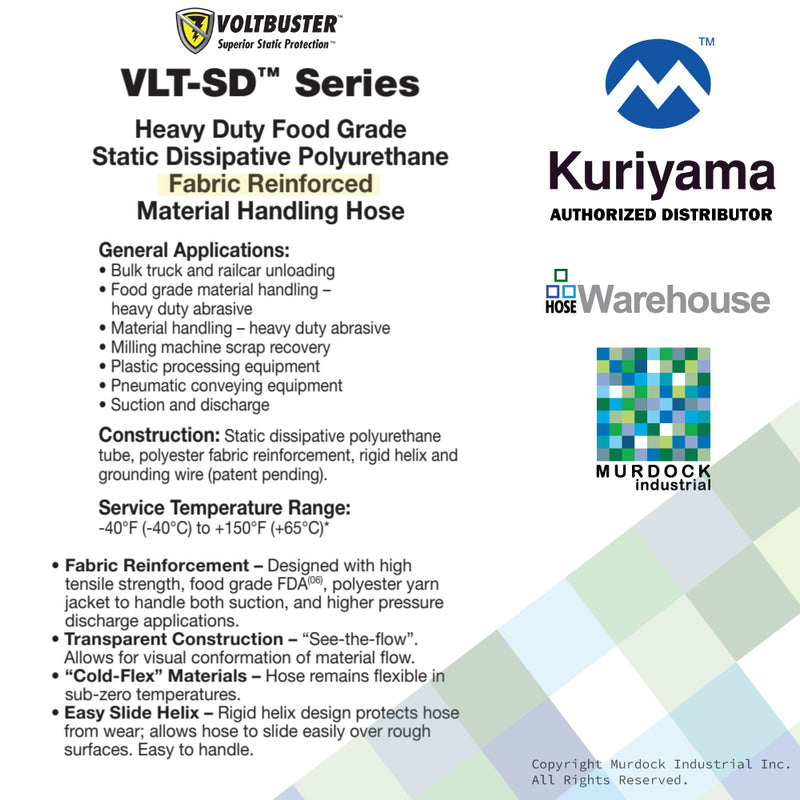

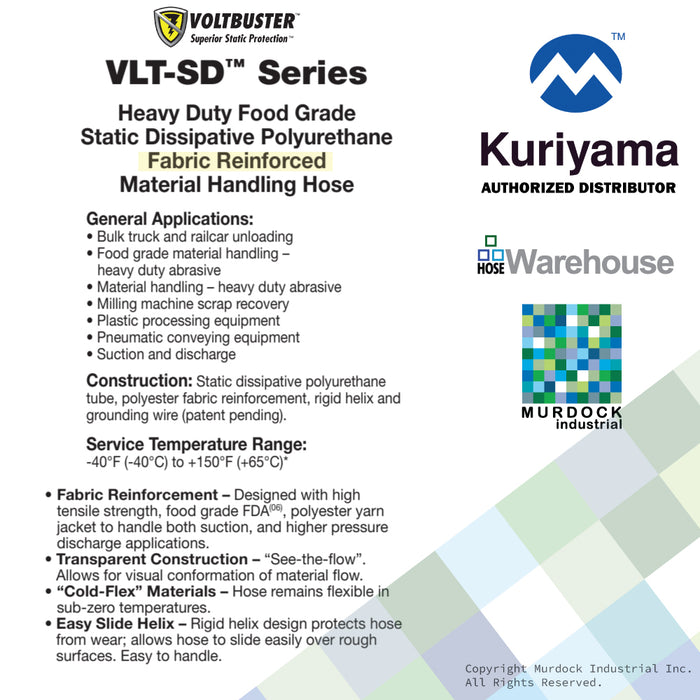

Other Features:

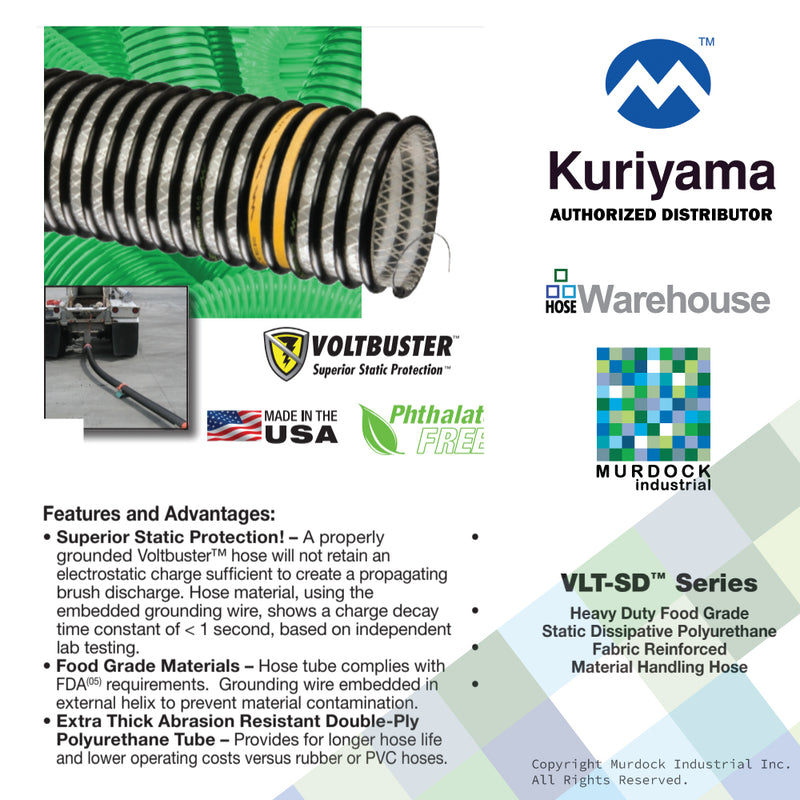

  • Superior Static Protection! - A properly grounded Voltbuster™ hose will not retain an electrostatic charge suffi cient to create a propagating brush discharge. Hose material, using the embedded grounding wire, shows a charge decay time constant of < 1 second, based on independent lab testing.
  • Food Grade Materials - Hose tube complies with FDA(05) requirements. Grounding wire embedded in external helix to prevent material contamination.
  • Extra Thick Abrasion Resistant Double-Ply Polyurethane Tube - Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
  • Fabric Reinforcement - designed with high tensile strength, food grade FDA(06), polyester yarn jacket to handle both suction, and higher pressure discharge applications.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Easy Slide Helix - Rigid helix design protects hose from wear; allows hose to slide easily over rough surfaces. Easy to handle.
  • Oil Resistant Polyurethane Tube - Resists most animal and petroleum based oils.

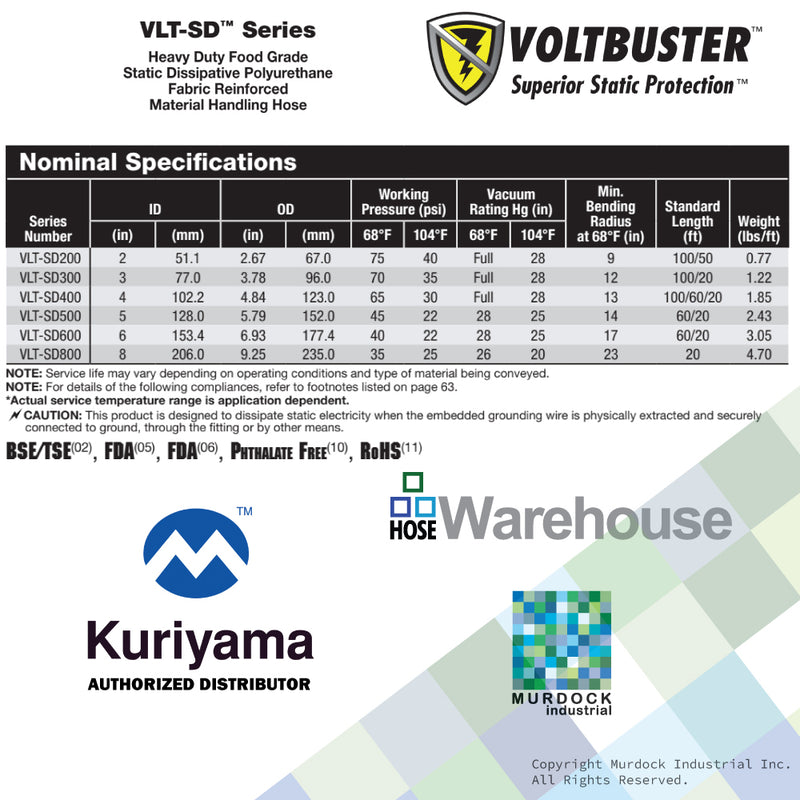

Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Min. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
VLT-SD200X50 2" 51.1mm 2.67" 67.0mm 75 PSI 40 PSI Full 28in. Hg 9" 50ft
VLT-SD200X100 2" 51.1mm 2.67" 67.0mm 75 PSI 40 PSI Full 28in. Hg 9" 100ft
VLT-SD300X100 3" 77.0mm 3.78" 96.0mm 70 PSI 35 PSI Full 28in. Hg 12" 100ft 1.22 lbs
VLT-SD300X20 3" 77.0mm 3.78" 96.0mm 70 PSI 35 PSI Full 28in. Hg 12" 20ft 1.22 lbs
VLT-SD400X100 4" 102.2mm 4.84" 123.0mm 65 PSI 30 PSI Full 28in. Hg 13" 100ft 1.85 lbs
VLT-SD400X60 4" 102.2mm 4.84" 123.0mm 65 PSI 30 PSI Full 28in. Hg 13" 60ft 1.85 lbs
VLT-SD400X20 4" 102.2mm 4.84" 123.0mm 65 PSI 30 PSI Full 28in. Hg 13" 20ft 1.85 lbs
VLT-SD500X60 5" 128.0mm 5.79" 152.0mm 45 PSI 22 PSI 28in. Hg 25in. Hg 14" 60ft 2.43 lbs
VLT-SD500X20 5" 128.0mm 5.79" 152.0mm 45 PSI 22 PSI 28in. Hg 25in. Hg 14" 20ft 2.43 lbs
VLT-SD600X60 6" 153.4mm 6.93" 177.4mm 40 PSI 22 PSI 28in. Hg 25in. Hg 17" 60ft 3.05 lbs
VLT-SD600X20 6" 153.4mm 6.93" 177.4mm 40 PSI 22 PSI 28in. Hg 25in. Hg 17" 20ft 3.05 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent. CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fi tting or by other means.

Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
