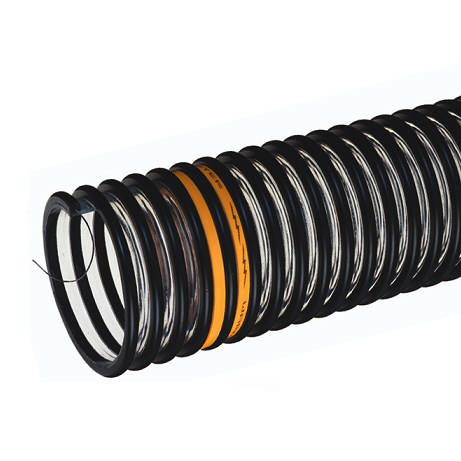

VOLT200X100 Kuriyama Tigerflex VOLTBUSTER™ Heavy Duty Food Grade Static Dissipative Polyurethane Material Handling Hose - 2" - 100ft
VOLT200X100 Tigerflex by Kuriyama | VOLTBUSTER™ | Heavy Duty Food Grade Static Dissipative Material Handling Hose | 2" ID | Polyurethane | 100ft Length
VOLT200X100 Tigerflex by Kuriyama | VOLTBUSTER™ | Heavy Duty Food Grade Static Dissipative Material Handling Hose | 2" ID | Polyurethane | 100ft Length
VOLT200X100 Tigerflex by Kuriyama | VOLTBUSTER™ | Heavy Duty Food Grade Static Dissipative Material Handling Hose | 2" ID | Polyurethane | 100ft Length
VOLT200X100 Kuriyama Tigerflex VOLTBUSTER™ Heavy Duty Food Grade Static Dissipative Polyurethane Material Handling Hose - 2" - 100ft

VOLT200X100 Tigerflex by Kuriyama | VOLTBUSTER™ | Heavy Duty Food Grade Static Dissipative Material Handling Hose | 2" ID | Polyurethane | 100ft Length

Save $173.93 Save $173.93
$1,739.26
$1,739.26 - $1,739.26
$1,739.26
$1,565.33
$1,565.33 - $1,565.33
$1,565.33

Kuriyama Tigerflex VOLTBUSTER™ Series Heavy Duty Food Grade Static Dissipative Polyurethane Material Handling Hose With Grounding Wire


Package Quantity: 100 FT

Specifications for Variant SKU: VOLT200X100 Kuriyama | 100 |
Brand: Tigerflex
Series: VOLT Series
Hose Color(s): Black & Clear/Semi-Clear & Orange
Internal Diameter: 2in
Outer Diameter: 2.52in
Tubing Construction: Static Dissipating Polyurethane
Applicable Specs & Approvals: Applicable FDA Requirements, RoHS Compliant
Special Properties: Conductive Tube, Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Application: Food Grade Material Handling, Material Handling, Pharmaceutical Product Transfer, Plastic Processing Equipment, Bulk Truck and Railcar Unloading, Fly Ash Collection, Pneumatic Conveying Equipment, Milling Machine Scrap Recovery SAE Rating: N/A
Other Ratings: N/A Tube: Static Dissipative Polyurethane
Reinforcement: Rigid Helix and Grounding Wire Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications BSE/TSE(02), FDA(05), RoHS(10)
Other Features:

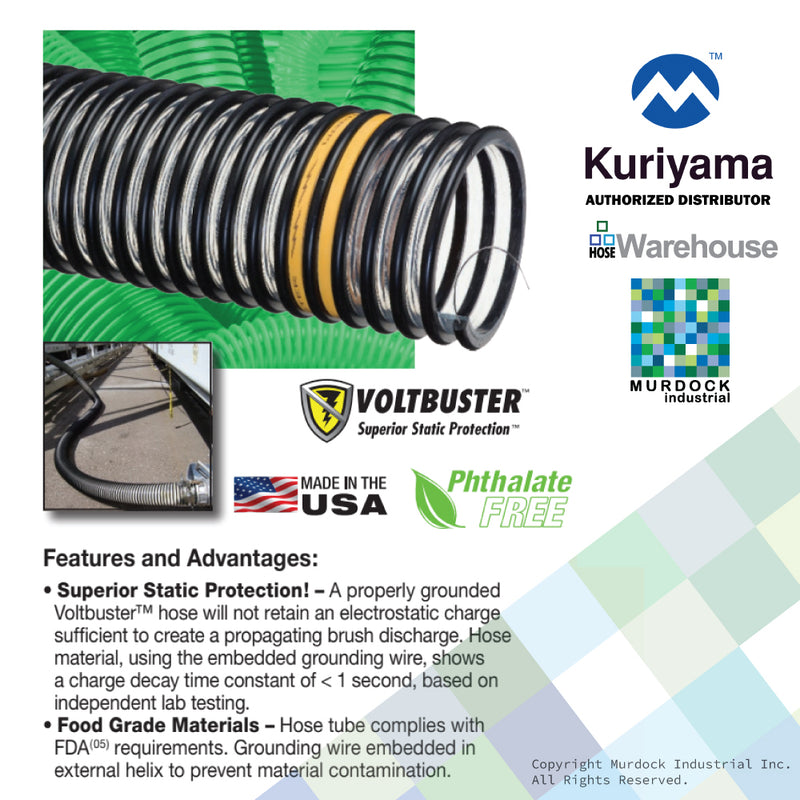

  • Superior Static Protection! - A properly grounded Voltbuster™ hose will not retain an electrostatic charge sufficient to create a propagating brush discharge. Hose material, using the embedded grounding wire, shows a charge decay time constant of < 1 second, based on independent lab testing.
  • Food Grade Materials - Hose cover complies with applicable FDA(03) requirements. Hose liner complies with applicable FDA(05) requirements. Grounding wire embedded in external helix to prevent material contamination.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Extra Thick Abrasion Resistant Single-Ply Polyurethane Tube - Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Easy Slide Helix - Rigid helix design protects hose tube from wear; allows hose to slide easily over rough surfaces. Easy to handle.
  • Oil Resistant Polyurethane Tube - Resists most animal and petroleum based oils.

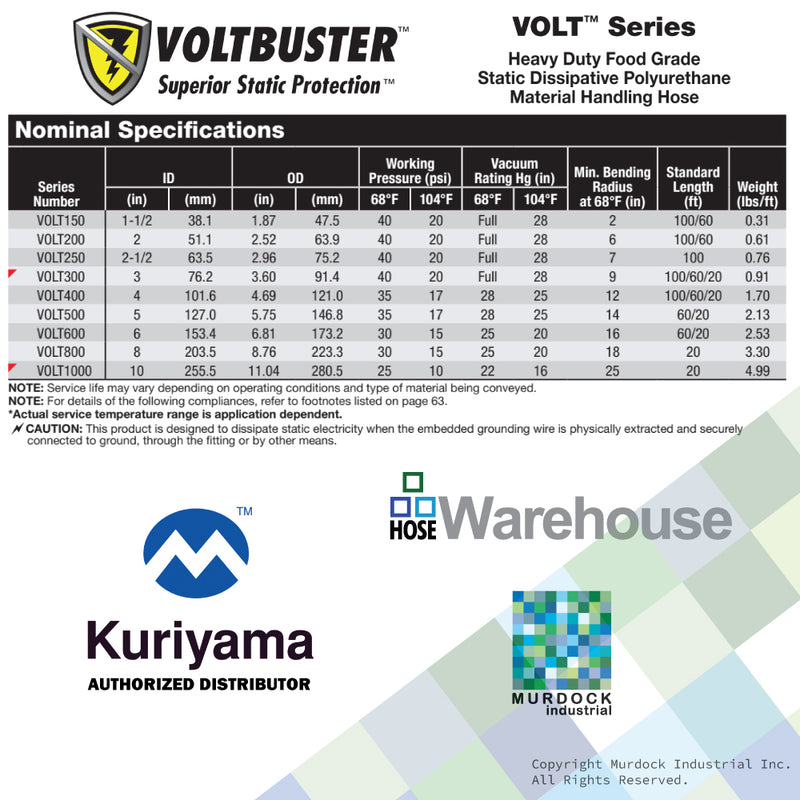

Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Min. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
VOLT150X100 1-1/2" 38.35mm 1.87" 47.5mm 40 PSI 20 PSI Full 28in. Hg 2" 100ft 0.31 lbs
VOLT150X60 1-1/2" 38.35mm 1.87" 47.5mm 40 PSI 20 PSI Full 28in. Hg 2" 100ft 0.31 lbs
VOLT200X100 2" 51.1mm 2.52" 63.9mm 40 PSI 20 PSI Full 28in. Hg 6" 100ft 0.61 lbs
VOLT200X60 2" 51.1mm 2.52" 63.9mm 40 PSI 20 PSI Full 28in. Hg 6" 60ft 0.61 lbs
VOLT250X100 2-1/2" 63.75mm 2.96" 75.2mm 40 PSI 20 PSI Full 28in. Hg 7" 100ft 0.76 lbs
VOLT300X100 3" 76.2mm 3.60" 91.4mm 40 PSI 20 PSI Full 28in. Hg 9" 100ft 0.91 lbs
VOLT300X60 3" 76.2mm 3.60" 91.4mm 40 PSI 20 PSI Full 28in. Hg 9" 60ft 0.91 lbs
VOLT400X100 4" 101.6mm 4.69" 121.0mm 35 PSI 17 PSI 28in. Hg 25in. Hg 12" 100ft 1.70 lbs
VOLT400X60 4" 101.6mm 4.69" 121.0mm 35 PSI 17 PSI 28in. Hg 25in. Hg 12" 60ft 1.70 lbs
VOLT400X20 4" 101.6mm 4.69" 121.0mm 35 PSI 17 PSI 28in. Hg 25in. Hg 12" 20ft 1.70 lbs
VOLT500X60 5" 127.0mm 5.75" 146.8mm 35 PSI 17 PSI 28in. Hg 25in. Hg 14" 60ft 2.13 lbs
VOLT500X20 5" 127.0mm 5.75" 146.8mm 35 PSI 17 PSI 28in. Hg 25in. Hg 14" 20ft 2.13 lbs
VOLT600X60 6" 153.4mm 6.81" 173.2mm 30 PSI 15 PSI 25in. Hg 20in. Hg 16" 60ft 2.53 lbs
VOLT600X20 6" 153.4mm 6.81" 173.2mm 30 PSI 15 PSI 25in. Hg 20in. Hg 16" 20ft 2.53 lbs
VOLT800X60 8" 203.5mm 8.76" 223.3mm 30 PSI 15 PSI 25in. Hg 20in. Hg 18" 60ft 3.30 lbs
VOLT800X20 8" 203.5mm 8.76" 223.3mm 30 PSI 15 PSI 25in. Hg 20in. Hg 18" 20ft 3.30 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent. CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fitting or by other means.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
