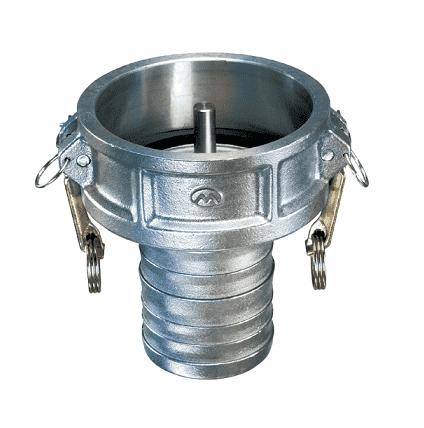

VRP-A4030 by Kuriyama | Petroleum Quick-Acting Coupling Vapor Recovery Coupler with Probe | Part A | 4" Female Coupler x 4" Hose Shank | Aluminum

VRP-A4030 by Kuriyama | Petroleum Quick-Acting Coupling Vapor Recovery Coupler with Probe | Part A | 4" Female Coupler x 4" Hose Shank | Aluminum

Save $25.05 Save $25.05
$87.68
$87.68 - $87.68
$87.68
$62.63
$62.63 - $62.63
$62.63

Kuriyama Couplings™ - Petroleum Quick-Acting Couplings - Part A - Vapor Recovery Coupler with Probe - Female Coupler x Hose Shank - Aluminum

Specifications for Variant SKU: VRP-A4030 Kuriyama
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 4in Female Cam & Groove, 4in Hose Barb
Material(s): Aluminum, Brass
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2", 5" and 8" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • All 8" and 10" female couplers supplied with 4 locking handles, safety clips, pull rings and chains.
  • Aluminum alloy is specially designed for high tensile strength, lightness and rigidity.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
  • Hose shanks specially designed for easy assembly with Tigerflex type hoses.
  • Aluminum couplings supplied with brass handles which results in less wear on connecting parts
Materials:
  • ASTM B85 Grade 383 aluminum alloy.
  • Forged brass handles - aluminum items.
  • Type 304 stainless steel handles - ALSH items.
  • Zinc-plated carbon steel handle pins.
  • Zinc-plated carbon steel pull rings.
  • Zinc-plated carbon steel safety clips
  • Buna-N Gaskets
Part Number Female Coupler Hose Shank Weight (Lbs.)
VRP-A4040 4" 3" 3.15 lbs
VRP-A4030 4" 4" 3.04 lbs
