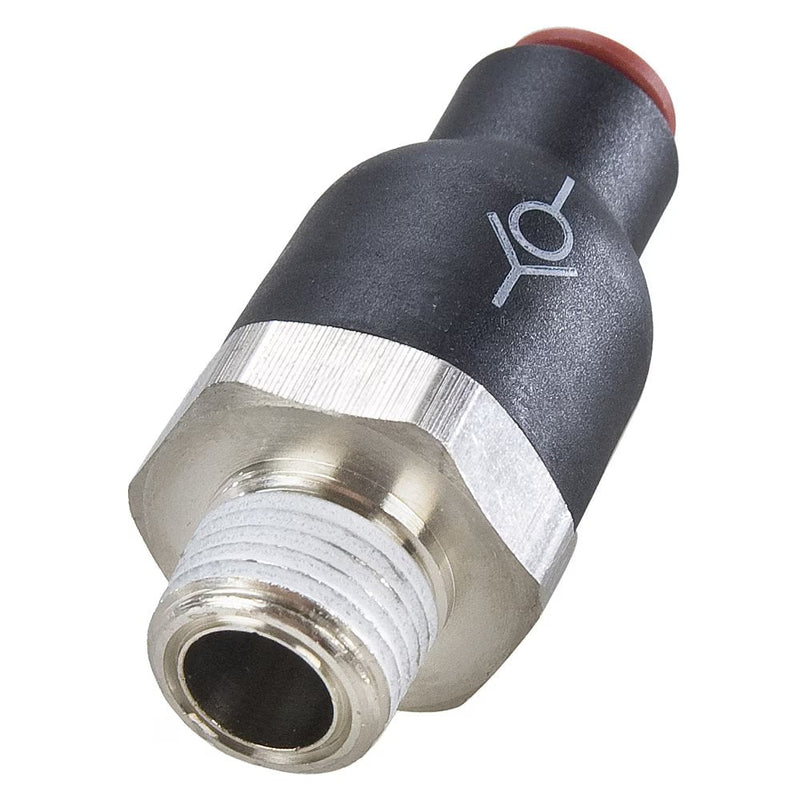

W68PLCK -8M-2R by Parker | Check Valve Meter Out | 8 mm Push-to-Connect x 1/8" Male BSPT Thread | 19 mm Hex | Straight | Nylon/Nickel-Plated Brass | Pack of 10

W68PLCK-8M-2R by Parker | Check Valve Meter Out | 8mm Push-to-Connect x 1/8" Male BSPT Thread | 19mm Hex | Straight | Nylon/Nickel-Plated Brass | Pack of 10

Save $140.71 Save $140.71
$351.78
$351.78 - $351.78
$351.78
$211.07
$211.07 - $211.07
$211.07

by Parker Hannifin
In-Line Check Valves:W68PLCK Male Check Valve Meter Out - BSPT

Package Quantity: 10 Units

Specifications for Variant SKU: W68PLCK-8M-2R Parker | 10 |
Series: W68PLCK Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass, Nylon, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Petrochemical, Valved
Product Features:
  • Nylon/Nickel-plated brass body
  • VC – Acetal body
  • Stainless steel gripping ring
  • Nickel-plated brass threads
  • Nitrile O-ring
  • EPDM O-ring (VC)
Markets:
  • Factory/Process Automation
  • Packaging
  • Petrochemical
  • Pneumatics
  • Semi-Conductor
Applications:
  • Robotics
  • Packaging
  • Textile
  • Machine Tools
  • Pneumatic Systems
  • Vacuum
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +34° to +150° F (+1.1° to 65.5° C)
Cracking Pressure: PLCK – 7 PSI (0.4 bar),
VC – 1/3 PSI (0.02 bar)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number Tube Size BSPT Hex H
W68PLCK-4M-2R 4 mm 1/8" 16 mm 28.5 mm
W68PLCK-6M-2R 6 mm 1/8" 16 mm 30.5 mm
W68PLCK-6M-4R 6 mm 1/4" 16 mm 30.5 mm
W68PLCK-8M-2R 8 mm 1/8" 19 mm 36.0 mm
W68PLCK-8M-4R 8 mm 1/4" 19 mm 36.0 mm
W68PLCK-12M-6R 12 mm 3/8" 23 mm 42.0 mm
