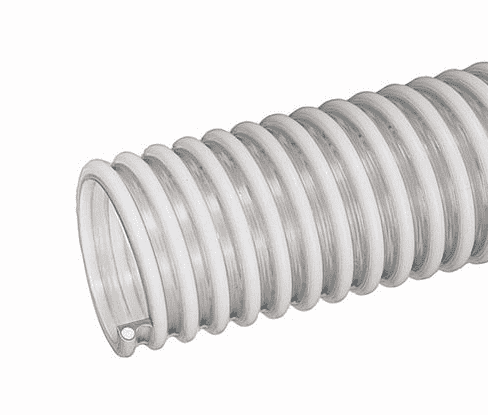

WBS400X50 Tigerflex by Kuriyama | WBS Series | Food Grade Static Dissipative Material Handling Hose | 4" ID | PVC | 50ft Length

WBS400X50 Tigerflex by Kuriyama | WBS Series | Food Grade Static Dissipative Material Handling Hose | 4" ID | PVC | 50ft Length

Save $377.40 Save $377.40
$1,320.90
$1,320.90 - $1,320.90
$1,320.90
$943.50
$943.50 - $943.50
$943.50

Kuriyama Tigerflex WBS™ Series Food Grade PVC Static Dissipative Material Handling Hose


Package Quantity: 50 FT

Specifications for Variant SKU: WBS400X50 Kuriyama | 50 |
Brand: Tigerflex
Series: WBS Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 4in
Outer Diameter: 4.76in
Tubing Construction: Static Dissipating PVC
Applicable Specs & Approvals: Applicable FDA Requirements, Applicable USDA Requirements, RoHS Compliant
Special Properties: Conductive Tube, Outer Helix Protection

SPECIFICATIONS

Application: Food Grade Material Handling, Material Handling, Pharmaceutical Product Transfer, Plastic Processing Equipment, Pneumatic Conveying Equipment SAE Rating: N/A
Other Ratings: N/A Tube: Static Dissipative PVC
Reinforcement: Rigid PVC Helix. Cover: N/A
Temperature Range: -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications BSE/TSE(02), FDA(03), RoHS(10), USDA(11)
Other Features:
  • Abrasion Resistant PVC Tube - Formulated from highly durable PVC compounds for increased abrasion resistance.
  • Food Grade Materials - Hose complies with applicable FDA(03) requirements. Hose approved by USDA(11) for use in meat and poultry plants.
  • Static Dissipative Tube - Specially formulated to help prevent the build-up of static electricity for added safety and to help keep material flowing smoothly.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Convoluted Outer Cover - Provides increased hose flexibility.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Min. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
WBS150X100 1-1/2" 38.1mm 1.92" 48.8mm 50 PSI 25 PSI 28in. Hg 28in. Hg 3" 100ft 0.35 lbs
WBS200X100 2" 50.8mm 2.40" 61.0mm 40 PSI 20 PSI 28in. Hg 24in. Hg 4" 100ft 0.56 lbs
WBS250X100 2-1/2" 63.5mm 2.99" 75.9mm 40 PSI 20 PSI 28in. Hg 24in. Hg 5" 100ft 0.77 lbs
WBS300X100 3" 76.2mm 3.64" 92.5mm 40 PSI 20 PSI 28in. Hg 24in. Hg 6" 100ft 1.10 lbs
WBS400X100 4" 101.6mm 4.76" 121.0mm 35 PSI 20 PSI 24in. Hg 20in. Hg 10" 100ft 1.92 lbs
WBS400X50 4" 101.6mm 4.76" 121.0mm 35 PSI 20 PSI 24in. Hg 20in. Hg 10" 50ft 1.92 lbs
WBS45MX50 N/A 45.0mm N/A N/A N/A N/A N/A N/A N/A 50ft 26lbs
WBS57MX50 N/A 57.0mm N/A N/A N/A N/A N/A N/A N/A 50ft 31lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
