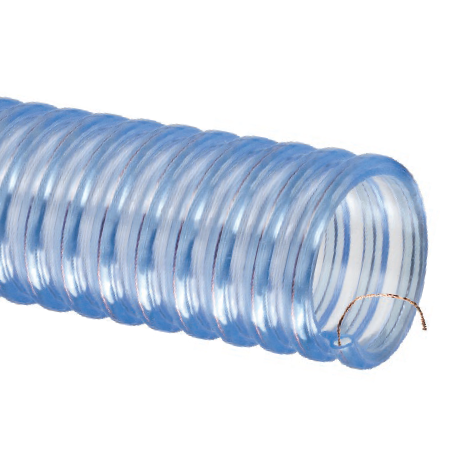

WE225X100 Kuriyama Tigerflex WE Series Food Grade PVC Material Handling Hose With Grounding Wire - 2-1/4" ID - 100ft

WE225X100 Tigerflex by Kuriyama | WE Series | Food Grade Material Handling Hose With Grounding Wire | 2-1/4" ID | PVC | 100ft Length

Save $100.30 Save $100.30
$1,002.97
$1,002.97 - $1,002.97
$1,002.97
$902.67
$902.67 - $902.67
$902.67

Kuriyama Tigerflex WE™ Series Food Grade PVC Material Handling Hose With Grounding Wire


Package Quantity: 100 FT

Specifications for Variant SKU: WE225X100 Kuriyama | 100 |
Brand: Tigerflex
Series: WE Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 2.25in
Outer Diameter: 2.80in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable FDA Requirements, Applicable USDA Requirements, RoHS Compliant
Special Properties: Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Application: Food Grade Material Handling, Material Handling, Pharmaceutical Product Transfer, Plastic Processing Equipment, Pneumatic Conveying Equipment SAE Rating: N/A
Other Ratings: N/A Tube: PVC Tube
Reinforcement: Rigid PVC Helix and Grounding Wire Cover: N/A
Temperature Range: -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications BSE/TSE(02), FDA(03), RoHS(10), USDA(11)
Other Features:
  • Superior Product Design - Tigerflex™ WE™ Series hoses are an industry standard for pneumatic material handling due to our specially engineered compound, innovative design and uncompromising quality control. Provides the ideal combination of light weight, flexibility and durability.
  • Food Grade Materials - Hose complies with applicable FDA(03) and 3-A(01) requirements. Hose approved by USDA(11) for use in meat and poultry plants.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Convoluted Outer Cover - Provides increased hose flexibility
  • Grounding Wire - Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It's embedded within the rigid helix to prevent contamination of transferred materials.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Min. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
WE125X100 1-1/4" 32.0mm 1.65" 42.0mm 50 PSI 25 PSI 28in. Hg 28in. Hg 2" 100ft 0.33 lbs
WE125X50 1-1/4" 32.0mm 1.65" 42.0mm 50 PSI 25 PSI 28in. Hg 28in. Hg 2" 50ft 0.33 lbs
WE150X100 1-1/2" 38.1mm 1.93" 49.0mm 50 PSI 25 PSI 28in. Hg 28in. Hg 3" 100ft 0.43 lbs
WE150X50 1-1/2" 38.1mm 1.93" 49.0mm 50 PSI 25 PSI 28in. Hg 28in. Hg 3" 50ft 0.43 lbs
WE200X100 2" 50.8mm 2.48" 63.0mm 40 PSI 20 PSI 28in. Hg 24in. Hg 4" 100ft 0.58 lbs
WE200X50 2" 50.8mm 2.48" 63.0mm 40 PSI 20 PSI 28in. Hg 24in. Hg 4" 50ft 0.58 lbs
WE225X100 2-1/4" 57.2mm 2.80" 71.0mm 40 PSI 20 PSI 28in. Hg 24in. Hg 4.5" 100ft 0.65 lbs
WE225X50 2-1/4" 57.2mm 2.80" 71.0mm 40 PSI 20 PSI 28in. Hg 24in. Hg 4.5" 50ft 0.65 lbs
WE250X100 2-1/2" 63.5mm 3.07" 76.5mm 40 PSI 20 PSI 28in. Hg 24in. Hg 5" 100ft 0.89 lbs
WE250X50 2-1/2" 63.5mm 3.07" 76.5mm 40 PSI 20 PSI 28in. Hg 24in. Hg 5" 50ft 0.89 lbs
WE300X100 3" 76.2mm 3.64" 91.5mm 40 PSI 20 PSI 28in. Hg 24in. Hg 6" 100ft 1.25 lbs
WE300X50 3" 76.2mm 3.64" 91.5mm 40 PSI 20 PSI 28in. Hg 24in. Hg 6" 50ft 1.25 lbs
WE350X100 3-1/2" 88.9mm 4.27" 108.5mm 35 PSI 18 PSI 28in. Hg 24in. Hg 8" 100ft 1.55 lbs
WE350X50 3-1/2" 88.9mm 4.27" 108.5mm 35 PSI 18 PSI 28in. Hg 24in. Hg 8" 50ft 1.55 lbs
WE400X100 4" 101.6mm 4.72" 120.0mm 35 PSI 18 PSI 24in. Hg 20in. Hg 10" 100ft 1.93 lbs
WE400X50 4" 101.6mm 4.72" 120.0mm 35 PSI 18 PSI 24in. Hg 20in. Hg 10" 50ft 1.93 lbs
WE500X60 5" 127.0mm 5.74" 146.0mm 30 PSI 15 PSI 24in. Hg 20in. Hg 16" 60ft 2.40 lbs
WE500X50 5" 127.0mm 5.74" 146.0mm 30 PSI 15 PSI 24in. Hg 20in. Hg 16" 50ft 2.40 lbs
WE600X60 6" 152.4mm 6.81" 175.5mm 30 PSI 15 PSI 24in. Hg 20in. Hg 18" 60ft 3.70 lbs
WE600X50 6" 152.4mm 6.81" 175.5mm 30 PSI 15 PSI 24in. Hg 20in. Hg 18" 50ft 3.70 lbs
WE45MX60 1.77" 45.0mm 2.20" 55.8mm 45 PSI 25 PSI 28in. Hg 24in. Hg 4" 60ft 0.46 lbs
WE57MX60 2.24" 57.0mm 2.76" 70.0mm 40 PSI 20 PSI 28in. Hg 24in. Hg 4.5" 60ft 0.64 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent. CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fitting or by other means.
