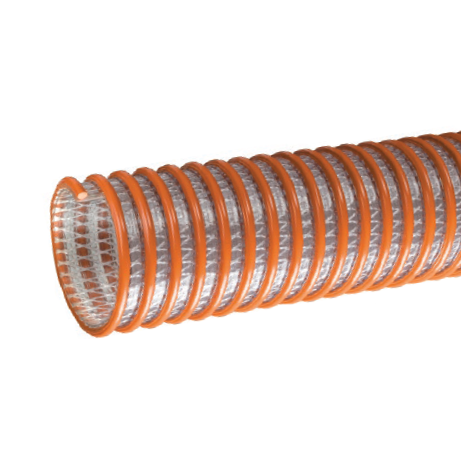

WST400X100 Kuriyama Tigerflex WST Series Heavy Duty PVC Fabric Reinforced Suction & Discharge Hose - 4" - 100ft

WST400X100 Tigerflex by Kuriyama | WST Series | Heavy Duty Fabric Reinforced Suction & Discharge Hose | 4" ID | PVC | 100ft Length

Save $353.28

$1,236.48

$1,236.48 - $1,236.48

$1,236.48

$883.20

$883.20 - $883.20

$883.20

Kuriyama Tigerflex WST™ Series Heavy Duty PVC Fabric Reinforced Suction & Discharge Hose

Package Quantity: 100 FT

Specifications for Variant SKU: WST400X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	WST Series
Hose Color(s):	Orange & Clear/Semi-Clear
Internal Diameter:	4in
Outer Diameter:	4.76in
Tubing Construction:	PVC
Applicable Specs & Approvals:	RoHS Compliant
Special Properties:	Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Fish suction, Water suction - heavy duty, Rental and construction dewatering, Irrigation lines Pumps, Trash, Suction and discharge	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Double-Ply PVC
Reinforcement:	Polyester Fabric, Rigid PVC Helix	Cover:	N/A
Temperature Range:	-4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	RoHS(10)
Fabric Reinforcement - Designed with high tensile strength polyester yarn jacket to handle both suction and higher pressure discharge applications. Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow. Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Approx. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
WST150X100	1-1/2"	38.1mm	1.95"	49.5mm	100 PSI	65 PSI	Full	28 in.Hg	2.5"	100ft	0.42 lbs
WST200X100	2"	50.8mm	2.60"	66.0mm	100 PSI	65 PSI	Full	28 in .Hg	4"	100ft	0.74 lbs
WST300X100	3"	76.2mm	3.62"	92.0mm	70 PSI	35 PSI	Full	28 in .Hg	6"	100ft	1.13 lbs
WST400X100	4"	101.6mm	4.76"	121.0mm	65 PSI	32 PSI	Full	28 in .Hg	8"	100ft	1.74 lbs
WST500X100	5"	127.0mm	5.98"	151.9mm	50 PSI	25 PSI	28 in .Hg	25 in .Hg	11"	100ft	2.95 lbs
WST600X100	6"	152.4mm	7.17"	182.1mm	50 PSI	25 PSI	28 in .Hg	25 in .Hg	13"	100ft	3.88 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
