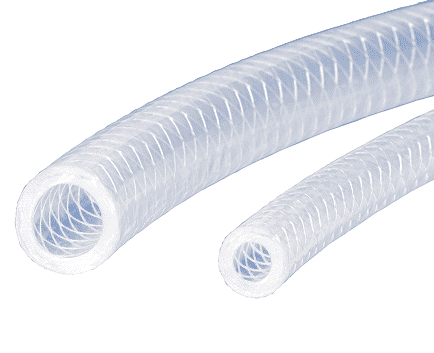

A1730-06X300 Kuri-Tec by Kuriyama | A1730 Series | Flexible FDA Clear Polyethylene Hose | 3/8" ID | .593" OD | 300ft Length

A1730-06X300 Kuri-Tec by Kuriyama | A1730 Series | Flexible FDA Clear Polyethylene Hose | 3/8" ID | .593" OD | 300ft Length

Save $25.36 Save $25.36
$275.56
$275.56 - $275.56
$275.56
$250.20
$250.20 - $250.20
$250.20

Kuriyama Kuri Tec® Series A1730 Series Flexible FDA Clear Polyethylene Hose A flexible food grade hose for those applications in which a PVC hose may not be suitable.

Package Quantity: 300 FT

Specifications for Variant SKU: A1730-06X300 Kuriyama | 300 |
Brand: Kuri Tec
Series: A1730 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.375in
Outer Diameter: 0.593in
Tubing Construction: Polyethylene
Cover Construction: Polyethylene
Applicable Specs & Approvals: Applicable FDA Requirements, RoHS Compliant

SPECIFICATIONS

Application: Applications involving radiation or other contaminants that require disposal of the hose after use, Food transfer. SAE Rating: N/A
Other Ratings: N/A Tube: 82 Shore "A" polyethylene in compliance with FDA(04) and RoHS(15) requirements
Reinforcement: High tensile strength yarn. Cover: 68 Shore "A" flexible polyethylene cover in compliance with FDA(04) and RoHS(15) requirements
Temperature Range: -60 deg. F (-51 deg. C) to +120 deg. F (+49 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA(04), RoHS(15)
Other Features:
  • Flexible non-chlorinated non-PVC hose.
  • Can be incinerated without harmful emissions.
  • Light weight.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) FullCoil CutLength
A1730-04X100 1/4" 6.5mm .460" 11.7mm 150 PSI 75 PSI N/A 100ft 4.5 lbs.
A1730-04X500 1/4" 6.5mm .460" 11.7mm 150 PSI 75 PSI 500ft N/A 22.5 lbs.
A1730-06X100 3/8" 9.5mm .593" 15.1mm 150 PSI 75 PSI N/A 100 ft 6.6 lbs.
A1730-06X300 3/8" 9.5mm .593" 15.1mm 150 PSI 75 PSI 300ft N/A 19.8lbs.
A1730-08X100 1/2" 12.7mm .740" 18.8mm 150 PSI 75 PSI N/A 100ft 9.1 lbs.
A1730-08X300 1/2" 12.7mm .740" 18.8mm 150 PSI 75 PSI 300ft N/A 17.3 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
