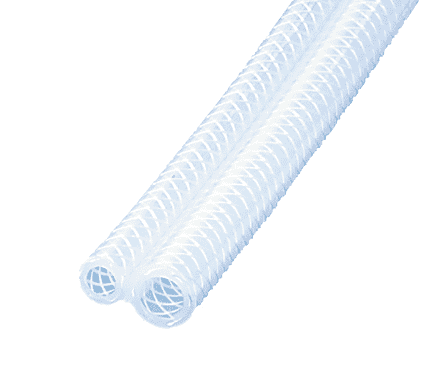

A9350-04060-03S Kuriyama Kuri Tec A9350 Series Polyethylene Yarn-Reinforced Dual Line Spray Hose - Line 1-1/4" ID - .457" OD, Line 2 - 3/8" ID - .593" OD - 300ft

A9350-04060-03S Kuri-Tec by Kuriyama | A9350 Series | Yarn-Reinforced Dual Line Spray Hose | Line 1-1/4" ID | .457" OD, Line 1 | 3/8" ID | .593" OD, Line 2 | Polyethylene | 300ft Length

Save $48.44 Save $48.44
$524.44
$524.44 - $524.44
$524.44
$476.00
$476.00 - $476.00
$476.00

Kuriyama Kuri Tec® A9350 Series Polyethylene Yarn-Reinforced Dual Line Spray Hose Special light weight dual line reinforced hose which offers chemical resistance along with ease of handling for spraying of herbicides and fertilizers.

Package Quantity: 300 FT

Specifications for Variant SKU: A9350-04060-03S Kuriyama | 300 |
Brand: Kuri Tec
Series: A9350 Series
Hose Color(s): White/Off-White
Internal Diameter: 0.375in, 1.25in
Outer Diameter: 0.457in, 0.593in
Tubing Construction: LLDPE
Applicable Specs & Approvals: RoHS Compliant

SPECIFICATIONS

Application: Spot herbicide treatment, while fertilizing, Automatic dilution of liquid concentrate at the spray head. SAE Rating: N/A
Other Ratings: N/A Tube: Special translucent LLDPE
Reinforcement: High tensile strength yarn. Cover: Special "low friction" translucent copolymer.
Temperature Range: -30 deg. F (-35 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(15)
Other Features:
  • Extremely light weight.
  • Exceptionally low resistance to dragging.
  • Both core and cover offer excellent chemical-resistance and resistance to environmental stress cracking.
  • Silicone-free.
  • One-piece lengths.
Line 1 Line 2
Part Number Nominal ID Nominal OD Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) (in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coil
A9350-04060-03S 1/4" 6.5mm .457" 11.6mm 3/8" 9.5mm .593" 15.1mm 250 PSI 100 PSI 300 ft 37 lbs.
A9350-04060-04S 1/4" 6.5mm .457" 11.6mm 3/8" 9.5mm .593" 15.1mm 250 PSI 100 PSI 400 ft 49 lbs.
A9350-04080-03S 1/4" 6.5mm .457" 11.6mm 1/2" 12.7mm .740" 18.8mm 250 PSI 100 PSI 300 ft 46 lbs.
A9350-04080-04S* 1/4" 6.5mm .457" 11.6mm 1/2" 12.7mm .740" 18.8mm 250 PSI 100 PSI 400 ft 61 lbs.
* Non stock item. Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
