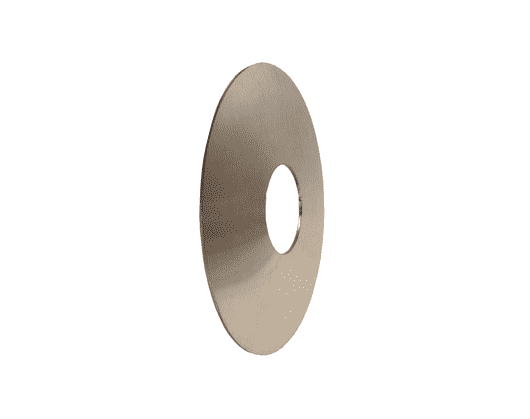

B25-G6001000 Dixon 304 Stainless Steel Sanitary Wall Flange - 6" Tube OD - 10.00 Flange OD

B25-G6001000 Dixon Valve 304 Stainless Steel Sanitary Wall Flange - 6" Tube OD - 10.00 Flange OD

Save $9.35 Save $9.35
$84.16
$84.16 - $84.16
$84.16
$74.81
$74.81 - $74.81
$74.81

Dixon Sanitary Fittings Sanitary Tube Hanger - Wall Flange - 304 Stainless Steel
Specifications for Variant SKU: B25-G6001000 Dixon
Part Number Tube OD Dimensions

Wall Thickness
A B
B25-G050300 1/2" .50" 3.00" .065"
B25-G050500 1/2" .50" 5.00" .065"
B25-G075300 3/4" .75" 3.00" .065"
B25-G075500 3/4" .75" 5.00" .065"
B25-G100300 1" 1.00" 3.00" .065"
B25-G100500 1" 1.00" 5.00" .065"
B25-G150500 1-1/2" 1.50" 5.00" .065"
B25-G200500 2" 2.00" 5.00" .065"
B25-G250500 2-1/2" 2.50" 5.00" .065"
B25-G300600 3" 3.00" 6.00" .065"
B25-G400700 4" 4.00" 7.00" .065"
B25-G500800 5" 5.00" 8.00" .065"
B25-G6001000 6" 6.00" 10.00" .065"
B25-G8001200 8" 8.00" 12.00" .065"
B25-G10001400 10" 10.00" 14.00" .065"
B25-G12001600 12" 12.00" 16.00" .065"
